The GSR series standalone routers are designed to be high performance and cost-effective solutions to meet your PCB depaneling requirements. The system allows continuous routing without stoppages and has a user-friendly software that allows the user to program the routing paths within minutes. Key components are protected from dust and dirt to increase machine performance and lifespan.

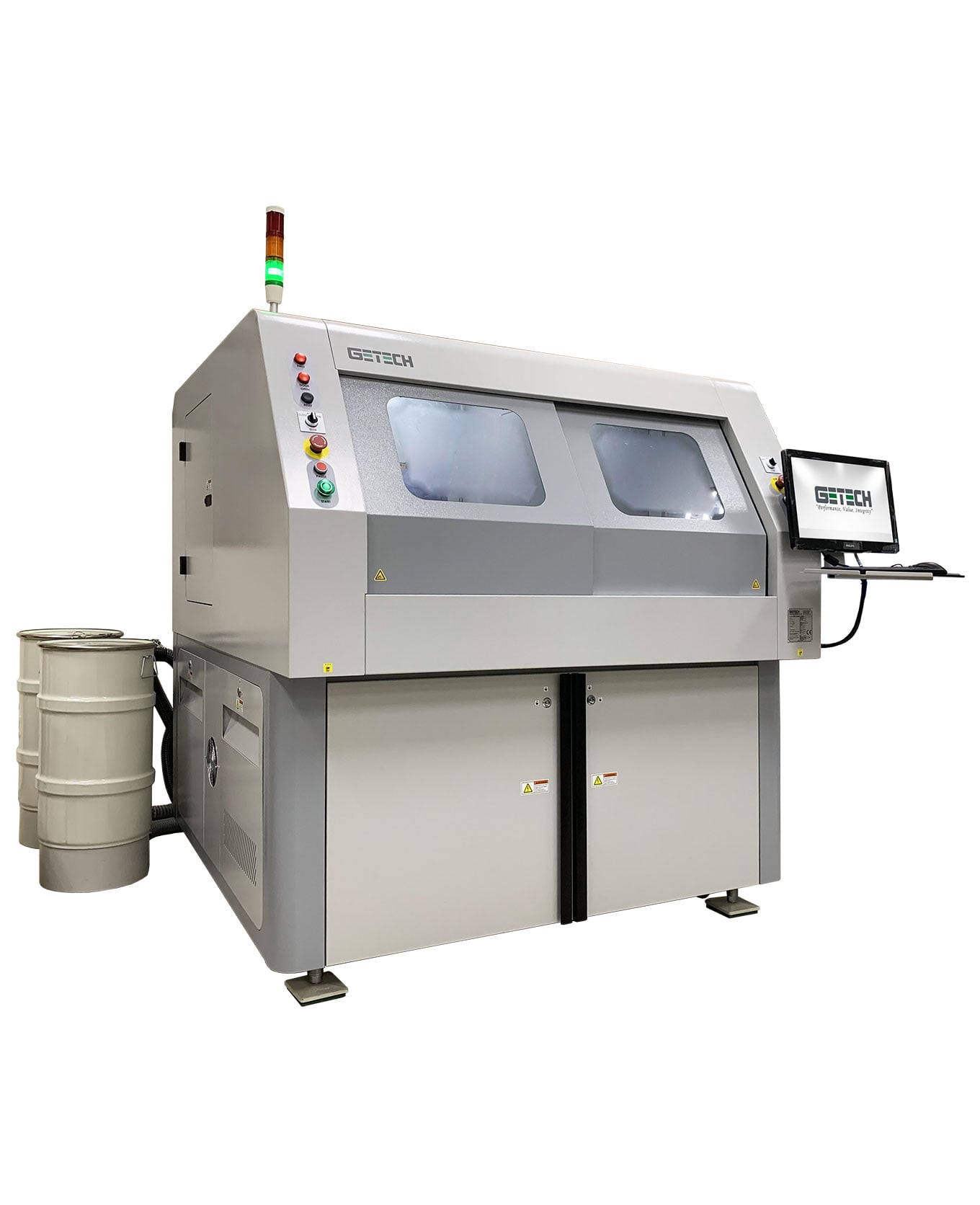

GETECH - Semi-automatic Router - GSR2280
The GSR2280 is a dual workstation standalone router and is known as the world’s fastest router with a cycle rate of only 0.3 seconds per tab.
It can accommodate larger PCBs with paximum panel size of 550mm x 585mm (21.5” x 23”). Equipped with Getech’s new Graphical User Interface, “Move, Teach & Cut”, the GSR has a user-friendly visual programming experience for rapid and accurate machine control.
Key features
- Dual tables
- High-speed routing
- High accuracy and quality cut
- Manual loading/unloading
- Automatic sliding doors
- Universal or dedicated fixtures and top clamp lifter available
- Safety protection enclosure cabinet with internal partition
- Rigid fixturing and easy replacement
- High-resolution camera
- Powerful dual vacuum system
- CE certification (option)
Technical Specifications
Technical specifications | |
Panel size | 550mm x 585mm |
Panel thickness | 0.4mm – 8.0mm |
Panel component height | 12mm (Subjected to review) |
Accuracy or repeatability | ±0.1 mm |
Machine dimensions (W x D x H) | 1670 mm x 1620 mm x 1700 mm |
Getech Automation was established in 1992 to focus on developing and manufacturing machines and systems to meet key needs of the PCBA and Semi-conductor industries. Today Getech has evolved to become a major producer of machinery and automation systems used by the Tech Manufacturing Industry.
