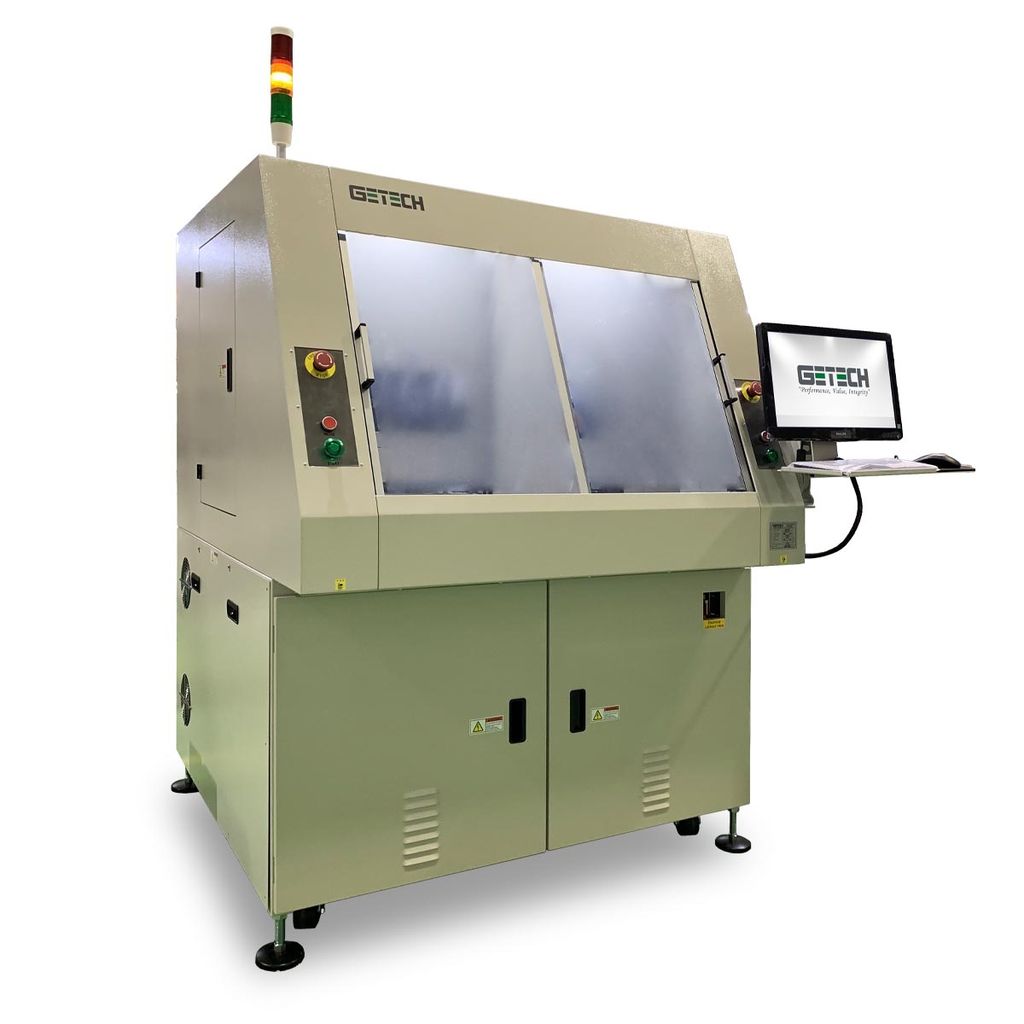

GETECH - Semi-automatic Router - GSR1200

Available

The GSR series standalone routers are designed to be high performance and cost-effective solutions to meet your PCB depaneling requirements. The system allows continuous routing without stoppages and has a user-friendly software that allows the user to program the routing paths within minutes. Key components are protected from dust and dirt to increase machine performance and lifespan.

GETECH - Semi-automatic Router - GSR1200

The GSR1200 is a standalone router machine specially designed to route (de-panelize)large panels with PCB size of 350mm x 350mm into individual units. It is capable of speeds of up to 100mm/s and positioning speeds of 1000mm/s. It has two worktables that allows continuous routing with no stoppages during panel loading and unloading. The superior servo axis system provides high acceleration/deceleration, reducing cycle time (increase in production output) and at the same time maintaining high accuracy cutting.

Using a high-resolution CCD camera, and GSR user-friendly Windows-based software allows the user to program the routing paths in minutes. There are also no limitations in the number of programs stored. GSR1200 uses high-quality components and awelded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.

Key features

  • Dual tables
  • High-speed routing
  • Manual loading/unloading
  • High-resolution camera
  • Rigid fixturing and easy replacement
  • Universal/dedicated fixtures and top clamp lifter available
  • Safety protection enclosure cabinet with internal partition
  • High accuracy and quality cut
  • Powerful dual vacuum system
  • User friendly software
  • CE certification (option)

Technical Specifications

Technical specifications



Panel size

350mm x 350mm

Panel thickness

0.4 mm – 3.0 mm
(Option: 0.4 mm – 8.0 mm with 0.5 kW Spindle)

Panel component height

Top max. 12 mm
Bottom max. 25 mm (standard) / 50 mm (option)

Non-routing speed

1000mm/sec

Accuracy or repeatability

±0.1 mm straight lines, curves and interpolated profiles

Cutting speed

100 mm/sec max (depending on material, cutting quality & tool diameter)

Machine dimensions

1300 mm x 1300 mm x 1700 mm

Additional machine information

It is available in many configurations, offering twin and single table sizes, vacuum fixtures and dual head spindles.

Getech Automation was established in 1992 to focus on developing and manufacturing machines and systems to meet key needs of the PCBA and Semi-conductor industries. Today Getech has evolved to become a major producer of machinery and automation systems used by the Tech Manufacturing Industry.
