GETECH - Semi-automatic Router - GSR1290

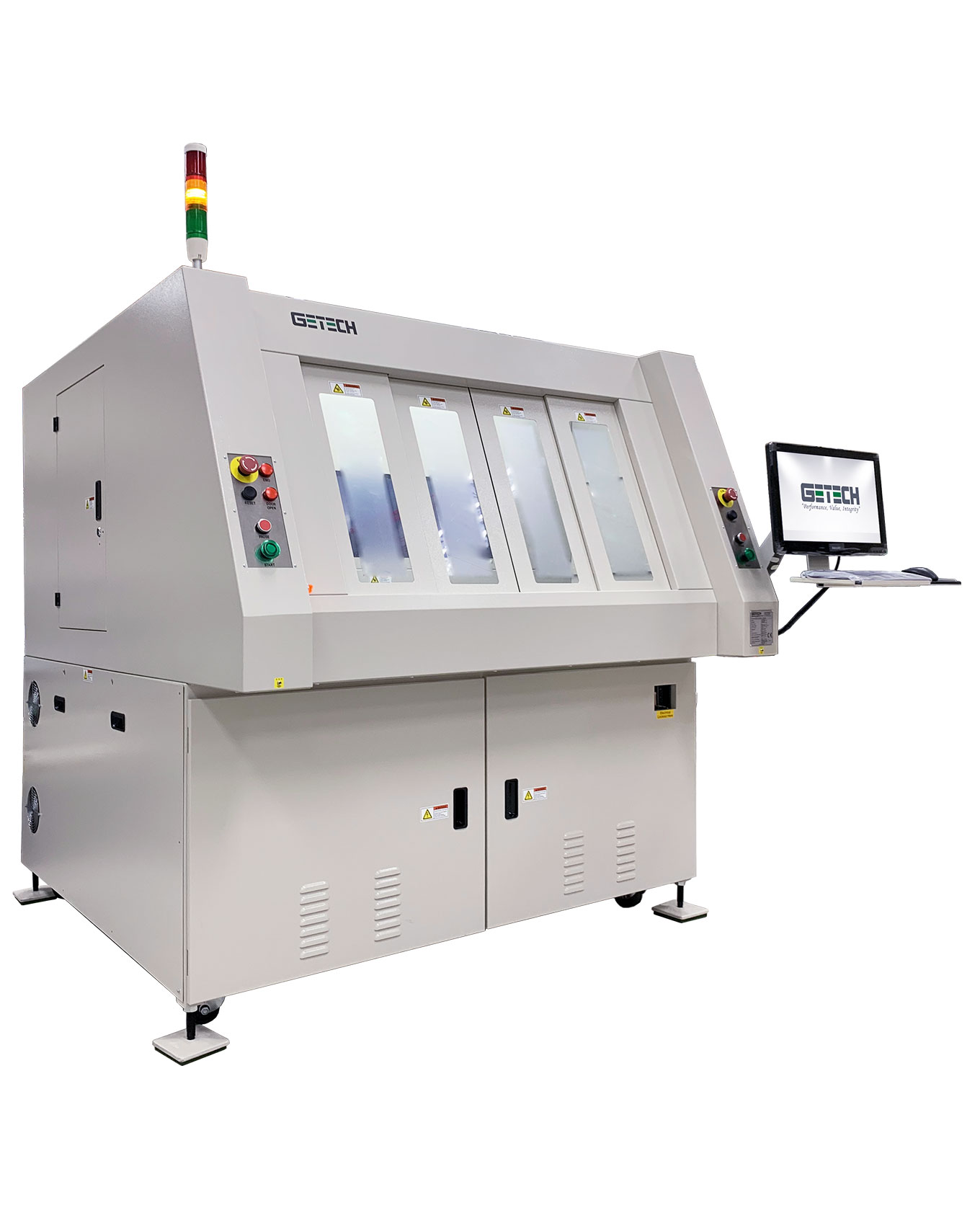

The GSR1290 is a single workstation standalone router which can handle large panel sizes up to 910mm x 610mm (35.5” x 24.0”).
The GSR series standalone routers are designed to be high performance and cost-effective solutions to meet your PCB depaneling requirements. The system allows continuous routing without stoppages and has a user-friendly software that allows the user to program the routing paths within minutes. Key components are protected from dust and dirt to increase machine performance and lifespan.
Key features
• High-speed routing
• High-resolution camera
• Manual loading/unloading
• Rigid fixturing and easy replacement
• Universal/dedicated fixtures available
• Safety protection enclosure cabinet with internal partition
• High accuracy and quality cut
• Powerful dual vacuum system
• User friendly software
• CE certification (option)
Technical Specifications
Panel size | 910mm x 610mm |
Panel thickness | 0.4mm – 8.0mm |
Panel component height | 12mm (Subjected to review) |
Non-routing speed | 1000mm/sec |
Accuracy or repeatability | ±0.1 mm |
Cutting speed | 100mm/sec max |
Machine dimensions (W x D x H) | 1620mm x 1745mm x 1700mm |
Additional machine information | It is available in many configurations, offering twin and single table sizes, vacuum fixtures and dual head spindles |
Getech Automation was established in 1992 to focus on developing and manufacturing machines and systems to meet key needs of the PCBA and Semi-conductor industries. Today Getech has evolved to become a major producer of machinery and automation systems used by the Tech Manufacturing Industry.
