The GSR series standalone routers are designed to be high performance and cost-effective solutions to meet your PCB depaneling requirements. The system allows continuous routing without stoppages and has a user-friendly software that allows the user to program the routing paths within minutes. Key components are protected from dust and dirt to increase machine performance and lifespan.
GETECH - Semi-automatic Router - GSR1280

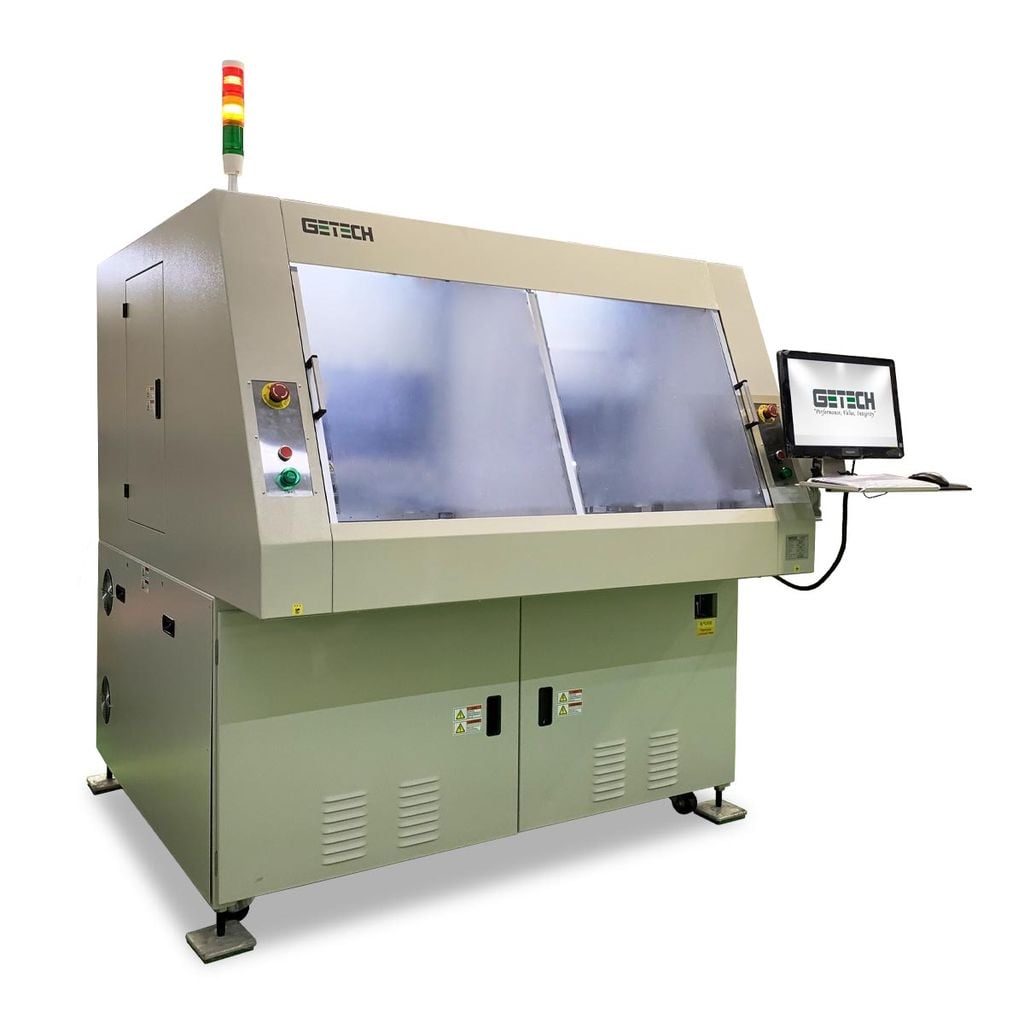

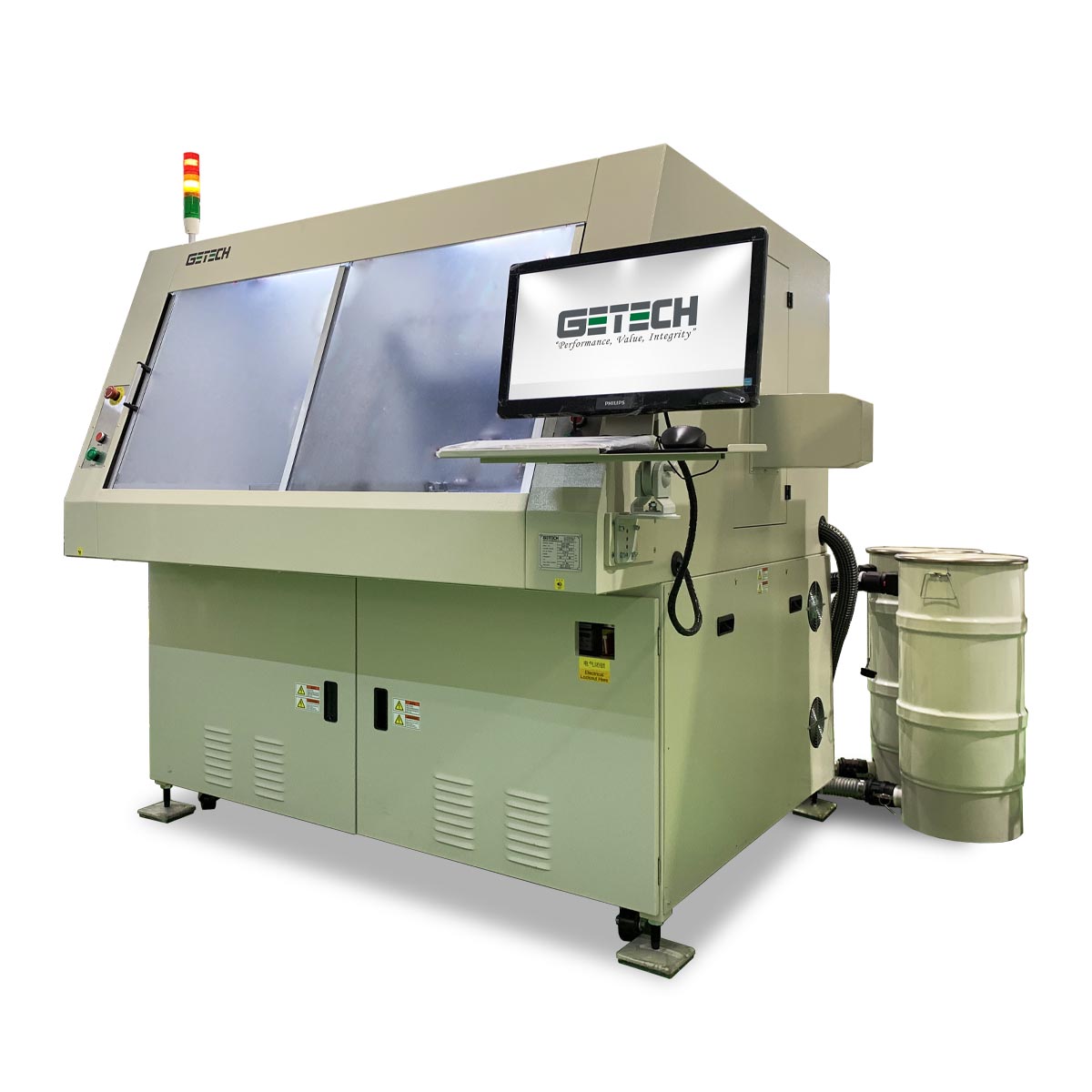

The GSR1280 is a standalone router machine specially designed to route (de-panelize)large panels with PCB size of 500mm x 500mm into individual units. It is capable of speeds of up to 100mm/s and positioning speeds of 1000mm/s. It has two worktables that allows continuous routing with no stoppages during panel loading and unloading. The superior servo axis system provides high acceleration/deceleration, reducing cycle time (increase in production output) and at the same time maintaining high accuracy cutting.
Using a high-resolution CCD camera, and GSR user-friendly Windows-based software allows the user to program the routing paths in minutes. There are also no limitations in the number of programs stored. GSR1280 uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance
Key features
- Dual tables
- High-speed routing
- Manual loading/unloading
- High-resolution camera
- Rigid fixturing and easy replacement
- Universal/dedicated fixtures and top clamp lifter available
- Safety protection enclosure cabinet with internal partition
- High accuracy and quality cut
- Powerful dual vacuum system
- User friendly software
- CE certification (option)
Technical Specifications
Technical specifications | |
Panel size | 500 mm x 500 mm (19.6” x 19.6”) |
Panel thickness | 0.4mm – 8.0mm |
Panel component height | Top max. 12 mm
Bottom max. 25 mm (standard) / 50 mm (option) |
Non-routing speed | 1000mm/sec |
Accuracy or repeatability | ±0.1 mm straight lines, curves and interpolated profiles |
Cutting speed | 100 mm/sec max (depending on material, cutting quality & tool diameter) |
Machine dimensions | 1700mm x 1570mm x 1700mm |
Additional machine information | It is available in many configurations, offering twin and single table sizes, vacuum fixtures and dual head spindles |
