The GSR series standalone routers are designed to be high performance and cost-effective solutions to meet your PCB depaneling requirements. The system allows continuous routing without stoppages and has a user-friendly software that allows the user to program the routing paths within minutes. Key components are protected from dust and dirt to increase machine performance and lifespan.

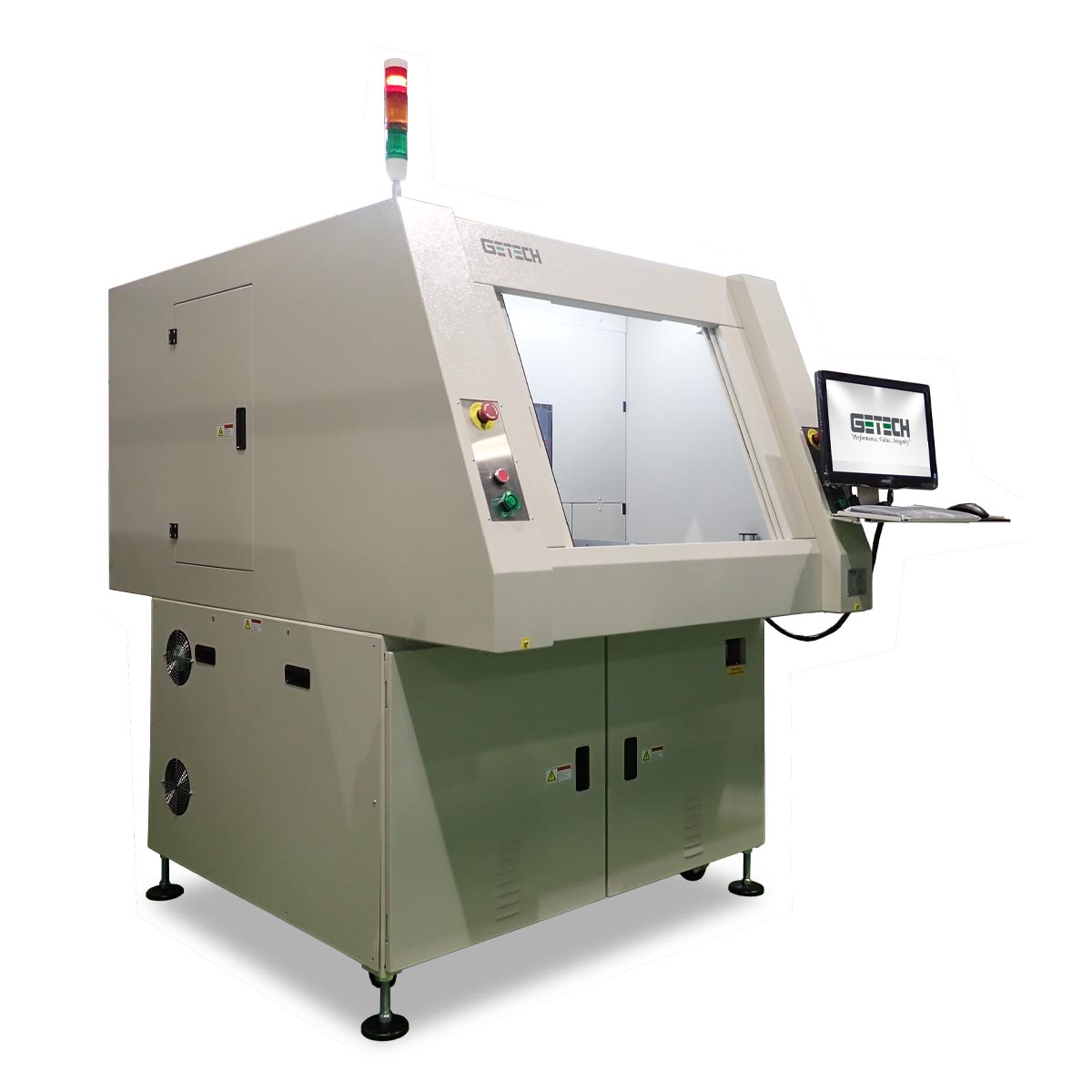

GETECH - Semi-automatic Router - GSR1280E

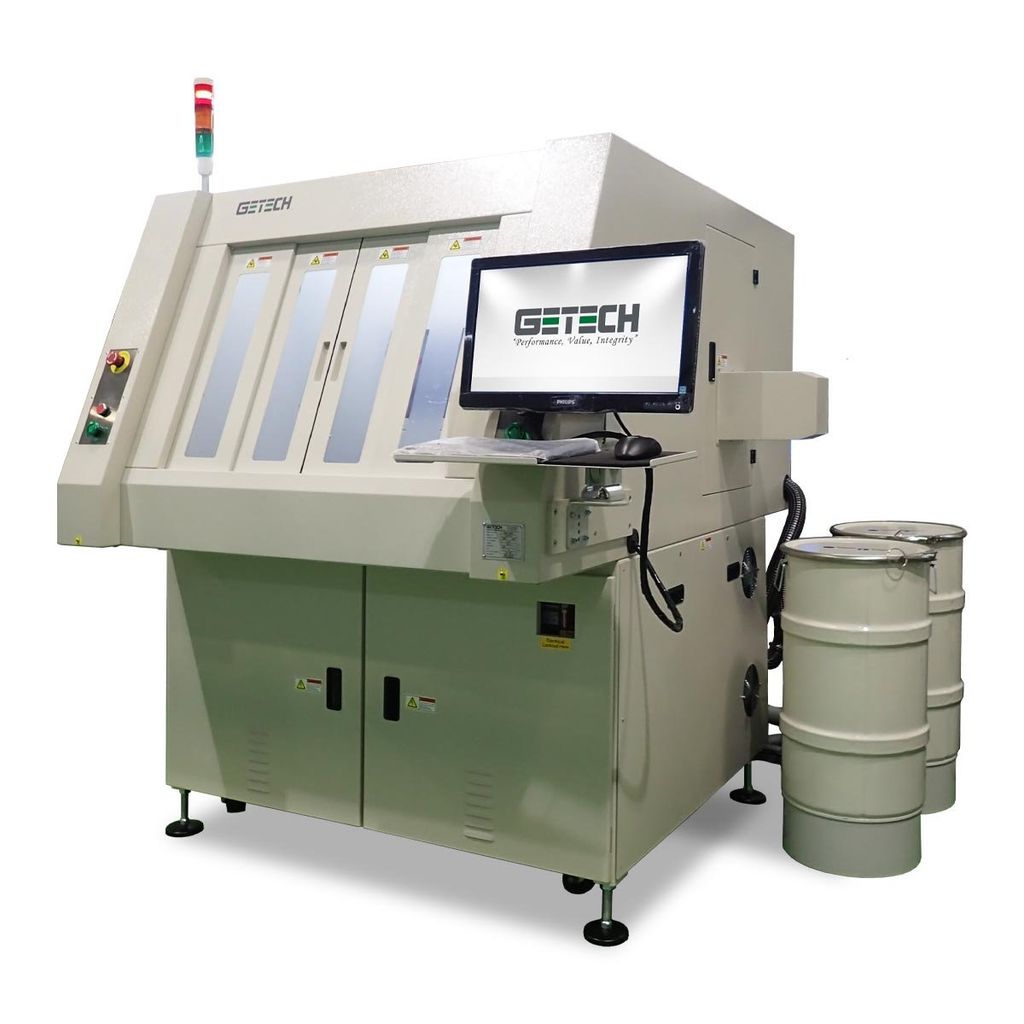

The GSR1280E is a single table standalone router machine that is specially designed to route (de-panelize) large panels with PCB size of 610mm x 610mm into individual units. It is capable of speeds of up to 100mm/s and positioning speeds of 1000mm/s. The superior servo axis system provides high acceleration/deceleration, reducing cycle time (increase in production output) and at the same time maintaining high accuracy cutting.
Using a high-resolution CCD camera, and GSR user-friendly Windows-based software allows the user to program the routing paths in minutes. There are also no limitationsin the number of programs stored. GSR1280E uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.
Key features
• High-speed routing
• High-resolution camera
• Manual loading/unloading
• Rigid fixturing and easy replacement
• Universal/dedicated fixtures and top clamp lifter available
• Safety protection enclosure cabinet with internal partition
• High accuracy and quality cut
• Powerful dual vacuum system
• User friendly software
• CE certification (option)
Technical Specifications
Technical specifications | |
Panel size | 610 mm x 610 mm (24” x 24”) |
Panel thickness | 0.4mm – 8.0mm |
Panel component height | Top max. 12 mm Bottom max. 25 mm (standard) / 50 mm (option) |
Non-routing speed | 1000mm/sec |
Accuracy or repeatability | ±0.1 mm straight lines, curves and interpolated profiles |
Cutting speed | 100 mm/sec max (depending on material, cutting quality & tool diameter) |
Machine dimensions (W x D x H) | 1300mm x 1745mm x 1700mm |
Additional machine information | It is available in many configurations, offering twin and single table sizes, vacuum fixtures and dual head spindles |
Getech Automation was established in 1992 to focus on developing and manufacturing machines and systems to meet key needs of the PCBA and Semi-conductor industries. Today Getech has evolved to become a major producer of machinery and automation systems used by the Tech Manufacturing Industry.
