ATV - Reflow Soldering - SRO-700
This table top soldering system is the ideal tool for R&D applications. With its rapid thermal annealing and brazing capabilities the SRO-700 is equally suited for your basic reflow soldering applications as well as all your R&D assignments. A cold wall chamber principle in combination with the IR lamp heating technology and the vacuum option will reward you with all the required process repeatability and perfect void free solder joints.
With its 100 mm clearance over the heated surface the system can handle products like IGBT and power electronics packages. The SRO-700 is an incredibly versatile reflow oven for semiconductor and MEMS application. Whatever the objective the SRO-700 is ready to handle it all.
Key Features
- Formic Acid Enriched Atmosphere
- Direct IR Heating
- Multiple TC monitoring
- Process temperature 450°C
- Oxygen < 1,0ppm with PURIFIED N2
- 100 steps/RECIPE program
Technical Specification
| Footprint | 770 x 560 x 800mm (LxWxH) |
|---|
| Weight | 65 kg (minimum configuration) |
|---|
| Chamber Height | 100mm |
|---|
| Heated Area | 230 x 217mm |
|---|
| Chamber Lid Open/Closing | Manual |
|---|

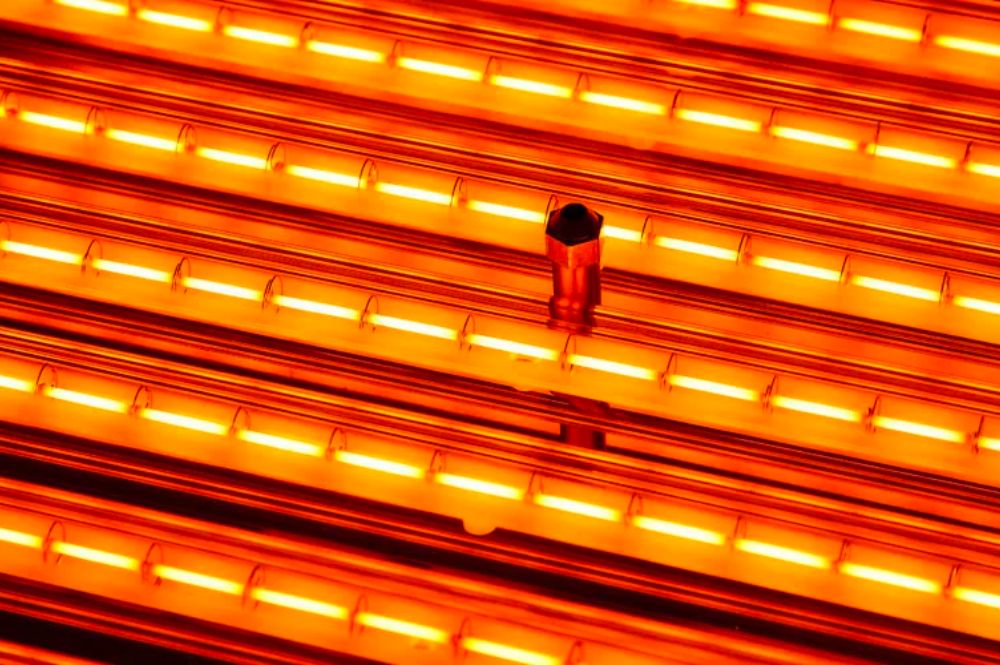

| IR Heating | Array of 8 IR lamps in Quartz glass tubes (2 Heating zones) |
|---|
| | For further details, please refer to enclosed brochure. |
ATV Technologie GmbH is a global company established in 1982, specializing in microelectronics and manufacturing and distributing vacuum soldering devices and processing ovens. Their team of engineers and physicists designs and develops high-quality, customized solutions for universities, laboratories, and production companies. ATV has extensive experience in creating process systems with precise temperature control and homogeneity for semiconductor technology and microelectronics, with a worldwide network of representatives for sales and service.
