ATV - Diamond Scriber - RV-129

Out of stock

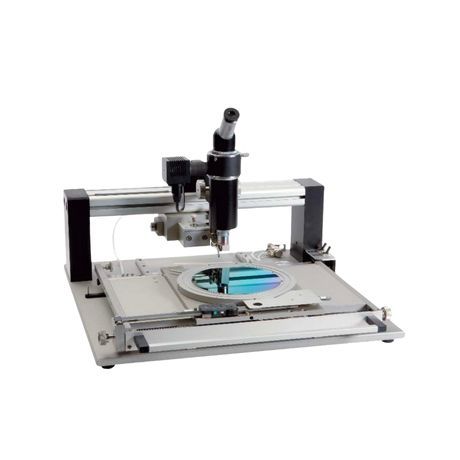

ATV - Diamond Scriber - RV-129
This reliable Diamond Scriber performs fast, easy, and precise scribing and cutting of silicon wafers, as well as thin and thick film ceramic and glass substrates. It forms the grooves necessary for effective glass or ceramic cutting: shallow, even, and continuous. All essential operating parameters - the angle of the scribing tool, the scribing force, the touchdown point and the lift up point of the tool are precisely adjustable to ensure optimal felxibility and repeatable results.

Key Features

  • Fast and easy operation
  • No maintenance
  • Multipurpose diamond tool with 4 cutting edges
  • Adjustable scribing force
  • Adjustable substrate thickness
  • Precise step and repeat by adjustable
  • Mechanical stop with angular adjustment
  • Roller blade for glass (option)

Technical Specification

X-axis movement range/maximum substrate width>/= 240 mm, resolution 10 micrometer
with digital gauge
Y-axis movement range/maximum scribing length>/= 240 mm
Maximum substrate thickness>/= 10 mm
Scribing pressure range5 - 581 grams by positioning of weights on a balance scale
Digital Camera: Dimensions500 x 500 x 300 mm
Digital Camera: Weightapprox. 25 kg

For further details, please refer to enclosed brochure.

ATV Technologie GmbH is a global company established in 1982, specializing in microelectronics and manufacturing and distributing vacuum soldering devices and processing ovens. Their team of engineers and physicists designs and develops high-quality, customized solutions for universities, laboratories, and production companies. ATV has extensive experience in creating process systems with precise temperature control and homogeneity for semiconductor technology and microelectronics, with a worldwide network of representatives for sales and service.
