Solarius - 3D Metrology - AOP


Solarius - 3D Metrology - AOP

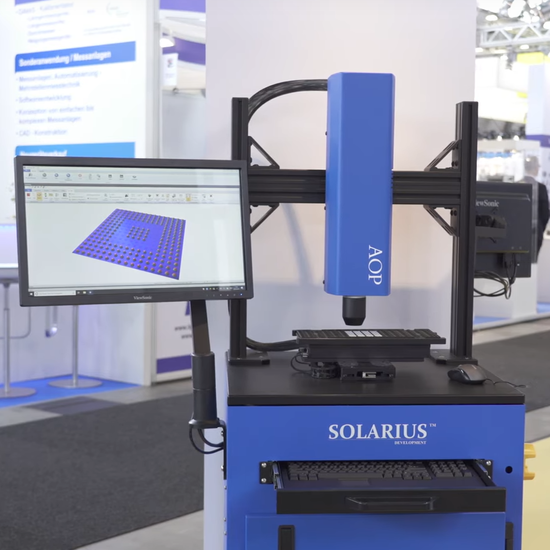

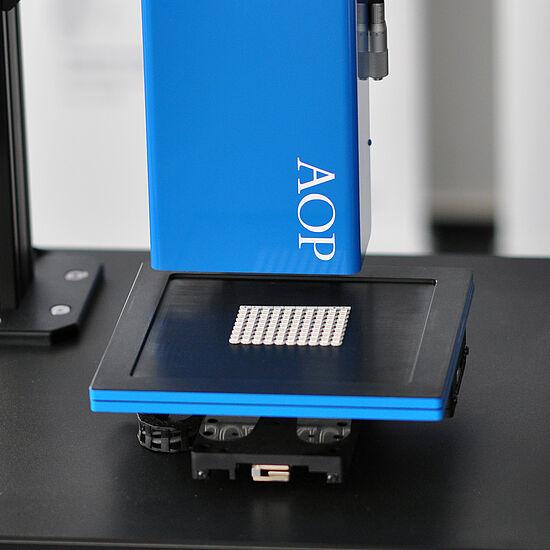

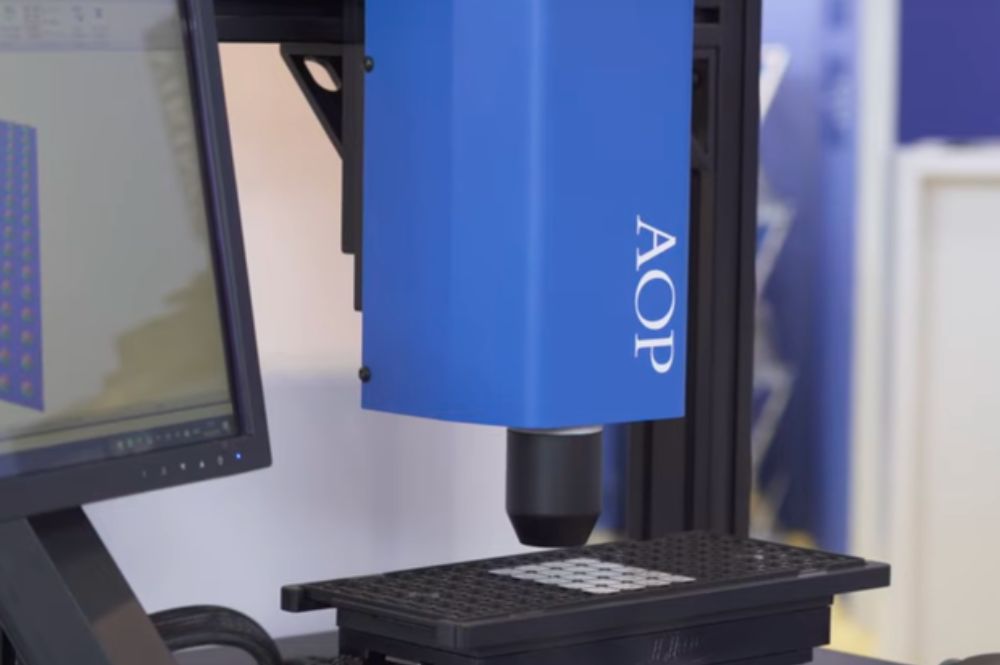

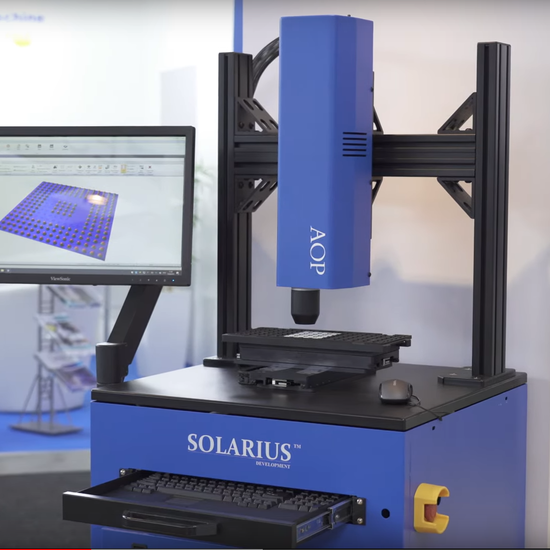

A modular metrology solution offering a broad range of 3D image sensors

The AOP platform is the most flexible and modular Solarius solution for all kinds of customized measurement tasks. Depending on the individual task, it can be equipped with different 3D measuring sensors out the entire available technology portfolio, many sizes of motion systems, and customized software. Its flexibility supports various applications and working environments and can be tailored to meet each customer’s requirements.

Sensor Types:

  • Chromatic confocal point sensors
  • Chromatic confocal line sensors
  • Confocal matrix sensors
  • Interferometric matrix sensors
  • Focus variation matrix sensors
  • Point triangulation sensors
  • Line triangulation sensors

The modular AOP platform can be equipped with all available non-destructive measurement technologies, including chromatic confocal point and line sensors, confocal area sensors, laser line triangulation sensors, interferometric sensors, and 2D camera systems. Height resolutions down to the single nm are supported the same as high-speed measurements of up to 80,000 points in 130 milliseconds. Vibration isolation and a lateral measurement range of up to 500 mm or more make the AOP the best solution for all kinds of measurement tasks.

Technical Specifications

Lateral Working Range

up to 500 mm x 500 mm

Vertical Working Range

100 µm to 80 mm

Lateral Resolution

1 µm up

Vertical Resolution

1 nm up


Solarius is a leading provider of precision systems for non-contact surface inspection, measurement, analysis, and visualization. Our products combine high-resolution sensors with automated data acquisition systems and powerful analysis tools.  Augmented by our international partner network Solarius takes care of an installed base exceeding 2,000 active metrology systems worldwide.
