PBT Works - PCB Cleaning - SUPERSWASH

Available

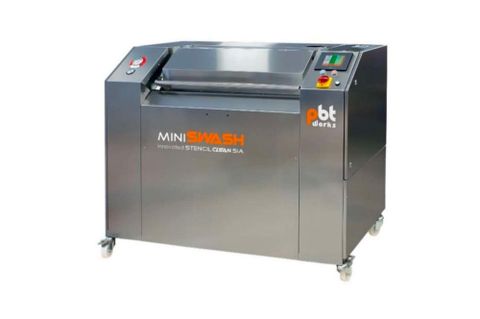

PBT Works - PCB Cleaning - MiniSWASH

Ideal machine for customers looking for the best cleaning results without the need for automation or very high throughput. Best solution for medium to low quantity of complex products that need to be cleaned perfectly.

  • Application: High Density SMD Assemblies
  • Capacity: Low to Medium
  • Volume Contamination Solubility: Easy to Hard
Cleaning Technology
Cleaning quality requires perfect filtration and minimal cross contamination.  Every PBT cleaning machine uses separated closed loop with dedicated pump and filtration system for each individual process step.

Technical Specification



SuperSWASH I

SuperSWASH II

Weight (without liquid)

520 kg

590 kg

Power input (according to the configuration)

15-20 kVA

16-23 kVA

Washing Pressure on the nozzles max/min

3/2,5 bar

3/2,5 bar

Open Rinse (mech. filtration)- pressure on the nozzles

3/2,5 bar

3/2,5 bar

Closed Rinse (mech. + DI water filters) - pressure on the nozzles

3/2,5 bar

3/2,5 bar

Machine noise level

La (eqv) < 70 dB

La (eqv) < 70 dB

Washing decanter volume max/min

61/40 liter

57/38 liter

Working area (left - right limit)

0-850 mm

0-850 mm

Machine dimension W X LX H

1700×1300×2000 mm

1700×1500×2000 mm



For further details, please refer to enclosed brochure.

  PBT Works ranks among the world’s best known manufacturers of cleaning technology for electronic assembly and tooling. We keep up with the latest process innovations in microelectronic assembly and so we are able to offer many customized machines based on end-user specific requirements. Our mission is to implement research ideas into the most up to date equipment.

PBT Works is a Czech company with its own manufacturing facilities.
Thanks to our 30-year tradition we gained a great deal of practical experience. Therefore, our machines and processes, which may often be considered extraordinary, became to be widely accepted.
