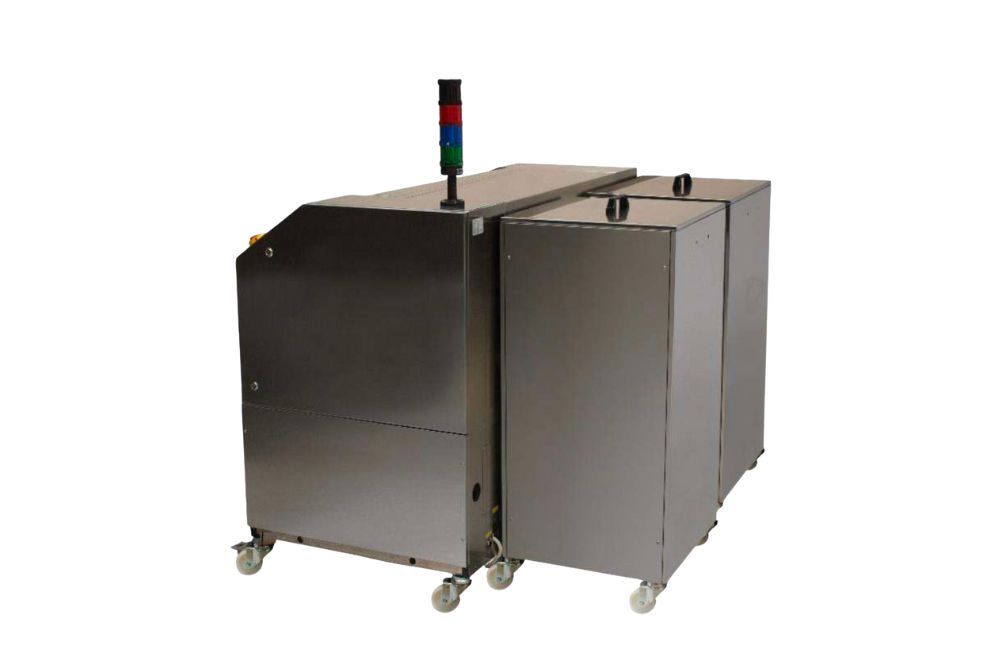

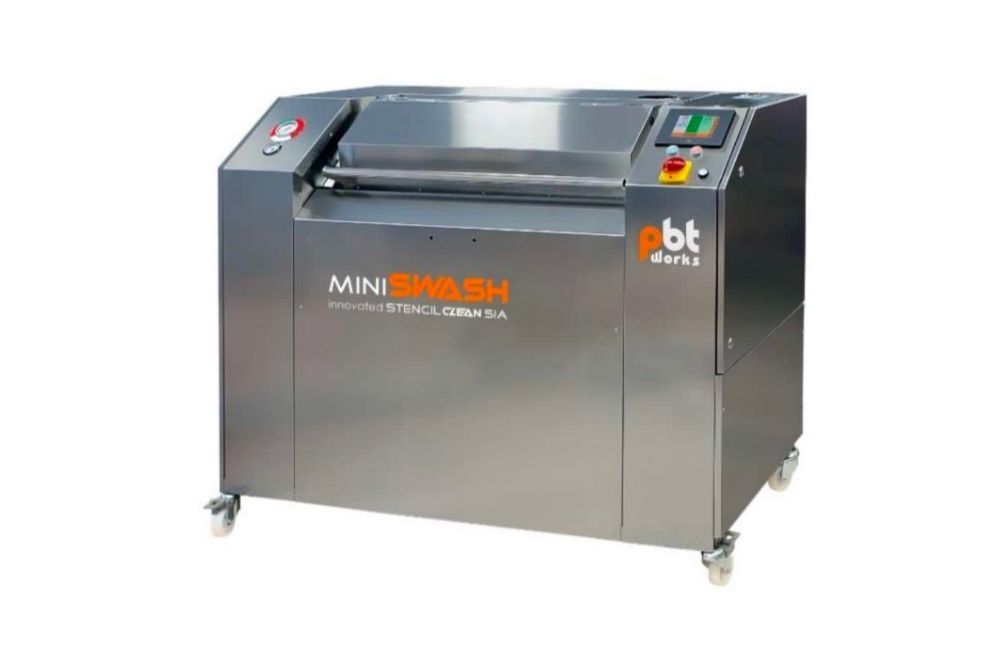

PBT Works - PCB Cleaning - MiniSWASH
This machine is a budget solution for anyone who does not expect to clean PCBAs on daily basis. Typically Research and Development centres, prototyping, start-ups and very low volume producers would find this machine sufficient to achieve great results.
- Application: Standard SMD Assemblies.
- Capacity: Small Volume
- Contamination Solubility: Easy to Moderate
Cleaning Technology
Cleaning quality requires perfect filtration and minimal cross contamination. Every PBT cleaning machine uses separated closed loop with dedicated pump and filtration system for each individual process step.
| | MiniSWASH I | MiniSWASH II (open loop) | MiniSWASH II (closed loop) | MiniSWASH III |
Number of cleaning phases | 2 | 3 | 3 | 3 |
Washing, heating | max. 60 °C | max. 60 °C | max. 60 °C | max. 60 °C |
Rinsing | N | Tap water | DI water | DI water |
Drying | max. 90 °C | max. 90 °C | max. 90 °c | max. 90 °c |
Mechanical filtration (Cleaning) | 20", 5 m | 20", 5 um | 20", 5 um | 20", 5 um |
Mechanical filtration (Rinsing) | N | 10", 5 um | 10", 1 um
10", 5 um | 10", 1 um
(10", 5 um) |
Chemical filtration (1st, Rinse loop) | N | N | Activated carbon, Mixbed | Activated carbon, Mixbed |
Machine dimensions
WxL× Hmm
W-left/right, L-front/rear | 1600 × 800 × 1200 mm
height 1600 mm with exhaust ventilator or signal tower | 1600 × 800 × 1200 mm
height 1600 mm with exhaust ventilator or signal tower | 1600 × 1400 × 1200 mm
height 1600 mm with exhaust ventilator or signal tower | 1600 × 1400 × 1200 mm
height 1600 mm with exhaust ventilator or signal tower |
Machine weight (without liquid) | 220 kg | 250 kg | 350 kg | 450 kg |
Maximum power input | 5,3-9,4 kVA | 10,2-10,6 kVA | 10,2-10,6 kVA | 10,2-10,6 kVA |
Machine noise level | LAeg <70 dB | LAeg <70 dB | LAeg <70 dB | LAeg <70 dB |
| | For further details, please refer to enclosed brochure. |
PBT Works ranks among the world’s best known manufacturers of cleaning technology for electronic assembly and tooling. We keep up with the latest process innovations in microelectronic assembly and so we are able to offer many customized machines based on end-user specific requirements. Our mission is to implement research ideas into the most up to date equipment.
PBT Works is a Czech company with its own manufacturing facilities.
Thanks to our 30-year tradition we gained a great deal of practical experience. Therefore, our machines and processes, which may often be considered extraordinary, became to be widely accepted.
