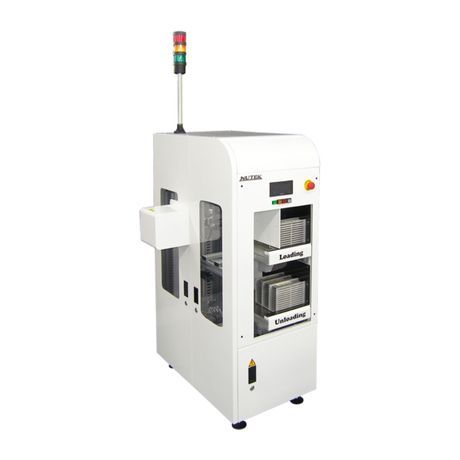

Nutek - High Speed Mini Loader - Semicon Series
This unit is used for loading of substrates, leadframes or carriers.
Features
- Applicable to various substrates, leadframes or carriers
- "Servo control" lifting motion
- High speed and precise indexing
- Machine size depends on the type of magazine used
- Stores up to 10 different types of magazine dimensions
- Stainless steel magazine guide
- Pneumatic pusher’s pressure regulated
- Easy loading or unloading of magazines
- User friendly touch screen panel
- SMEMA compatible
Technical Specifications
| Magazine | Specify upon order |
| No. of Magazines | Depends on magazine type |
| Loading Time | Average 5 seconds |
| Magazine Change-over Time | Average 20 seconds |
| Indexing Pitch | 1 - 4 (5mm pitch) or specify |
| Power Source | 100, 230VAC 1Ph |
| Power Consumption | 850VA max. |
| Air Pressure | 4 - 6 bar |
| Air Consumption | 10 It/min. max. |
Available Models
| Model No. | Size | Machine Dimension (mm)
L x W x H | Fixed Point to Front
Dimension (X) | Weight
(Approximately) |
|---|
| NTM4412LM | M | 753 x 989 x 1571 | 530 mm | 210 kg |
|---|
