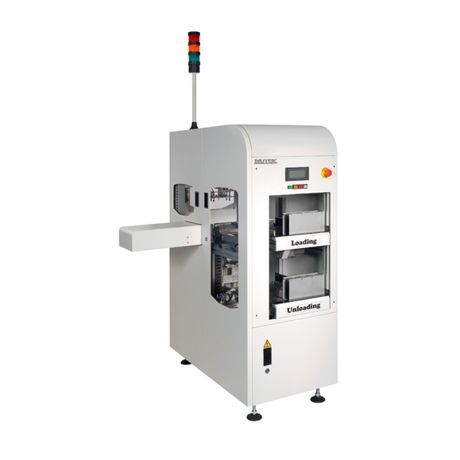

Nutek - Stack Leadframe/Magazine Loader - Semicon Series

Out of stock

Nutek - Stack Leadframe/Magazine Loader - Semicon Series

This unit is used for loading of substrates, leadframes or carriers.

Features

  • Applicable to various substrates, leadframes or carriers
  • Applicable to handle magazine of various sizes
  • ‘Servo Control’ lifting/traversing motion
  • High speed and precise indexing
  • Easy loading or unloading of magazines
  • Stores up to 10 different types of magazine dimensions
  • Operation selectable between magazine or stack
  • User friendly touch screen panel
  • Fast product change-over cycle
  • SMEMA compatible
Technical Specifications
MagazineSpecify upon order
No. of MagazinesDepends on magazine type
Loading TimeAverage 8 seconds (excluding interleaf)
Magazine Change-over TimeAverage 20 seconds
Indexing Pitch1 - 4 (5mm pitch) or specify
Power Source100, 230VAC 1Ph
Power Consumption1000VA max.
Air Consumption15 tr/min.

Available Models
Model No.SizeMachine Dimension (mm)
L x W x H
Fixed Point to Front
Dimension (X)
Weight
(Approximately)
NTM4413LMM955 x 1120 x 1550 mm660 mm340 kg

Nutek Private Limited (Nutek) conceptualizes, designs, and manufactures automated production systems to customer specifications. Nutek is highly regarded for its world-class quality products, produced with the flexibility and nimbleness demanded by its customers all over the world.
