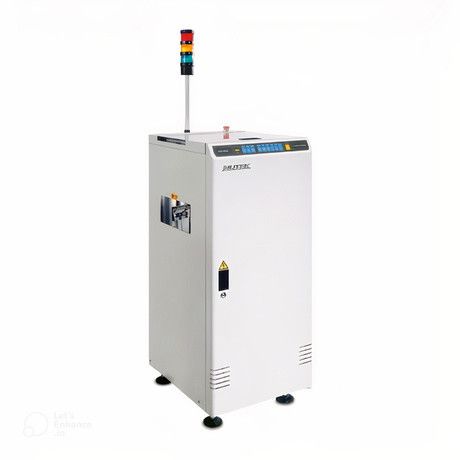

Nutek - Bare Board Loader With Pass Through Mode - Standard Series
Bare Board Loader With Pass Through Mode is used for loading of bare PCBs to the production line.
Features
- Surrounded with covers to provide highest level of safety
- Top safety cover can be opened for easy access to hardware during maintenance
- User friendly ‘soft touch’ LED membrane control panel
- Adjustable suction positions provide better grips of PCBs
- Smooth and parallel width adjustment
- Small machine footprint
Technical Specifications
| Maximum PCBs Height | 220 mm |
|---|
| Cycle Time | Average 10 seconds |
|---|
| Power Source | 100, 230VAC 1Ph |
|---|
| Power Consumption | 150VA max. |
|---|
| Air Pressure | 6 bar |
|---|
| Air Consumption | 90 ltr/min. max. |
|---|
Available Models
| Model No. | Size | Machine Dimension (mm)
L x W x H | Fixed Point to Front
Dimension (X) | Weight
(Approximately) |
|---|
| NTM0200-M | M | 500 x 730 x 1330 mm | 234 mm | 110 kg |
| NTM0200-L | L | 653 x 870 x 1330 mm | 234 mm | 140 kg |
| NTM0200PM (Pass through) | M | 500 x 730 x 1330 mm | 234 mm | 110 kg |
| NTM0200PL (Pass through) | L | 653 x 870 x 1330 mm | 234 mm | 140 kg |
