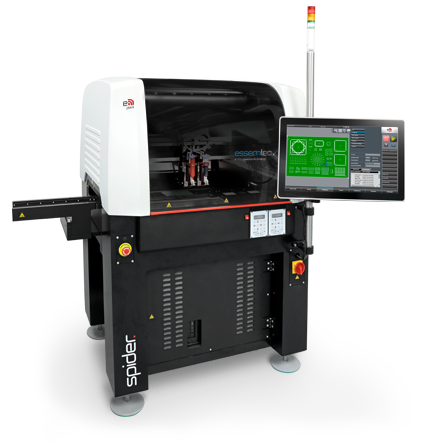

Spider - Smart-Sized High Speed Dispenser

Introducing - The Spider - State of the art technology, easily integrated in any line. Wide range of dispensing applications such as Solder Paste and SMT Glue, LED Encapsulation, Silver Epoxy, Dam and Fill, Underfill, Cavity Fill, 3D Dispensing via laser height mapping and more.

Key Features

Dispense Technology

Up to 2 valves simultaneously
5 different valves, large application range

Productivity

Up to 150'000 dots/h (with Piezo Jet Valve)
Up to 2'000'00o dot/h line mode

Small Footprint

Requires only 1 sqm of production floor
Machine fits through go cm wide door

Mineral Cast

No vibration, symmetrical mineral casting
No warpage, no thermal drift

Height Mapping

Mapping of heights using laser technology
Compensation of substrate warp / 3D contour

Linear Motors

Fast, reliable double drive linear motors
No maintenance, longest lifetime

Technical Specifications
Maximum dispensing speed	Piezo Jet Valve: 150‘000 dots/h
	Dynamic Shockwave Valve: 80‘000 Dots/h
	Time/Pressure Valve: 28‘000 Dots/h
	Archimedean Screw Valve: 24‘000 Dots/h
Dispensing mode	Dot, line, curve, interpolated 3D contour
Placement XY dots accuracy	40 μm (3σ)
Positioning Z axis accuracy	20 μm (3σ)
PCB dimensions	50 x 50 mm bis zu 406 x 305 mm (2 x 2” up to 16 x 12”)
Machine footprint dimensions	880 x 1090 mm (34.7 x 43”)

Essemtec leads the industry in adaptive SMT pick-and-place equipment for both high-speed- and micro-dispensing, as well as an intelligent production storage and logistic systems. Our products are equipped with user-friendly software packages, enabling flexible mounting and dispensing design that is unique in the market, as well as extensive and efficient material management. The combination of printed circuit board (PCB) placement accuracy, speed, and high-quality engineering makes our offerings unique. Equipped with the most up-to-date technology, Essemtec products allow easy programming and operation for a wide range of applications.
