Puma - Relentless Pick-And-Place & Dispensing
Introducing - The Fox technology - for all types of components and devices. Expandable in any direction. The Fox can drive up to 200 feeder, illustrating its dedication to high-mix production. Due to its small footprint and reasonable weight, the machine is ideal for use in limited space production areas even those located on upper floors.
Key Features
Combined Process

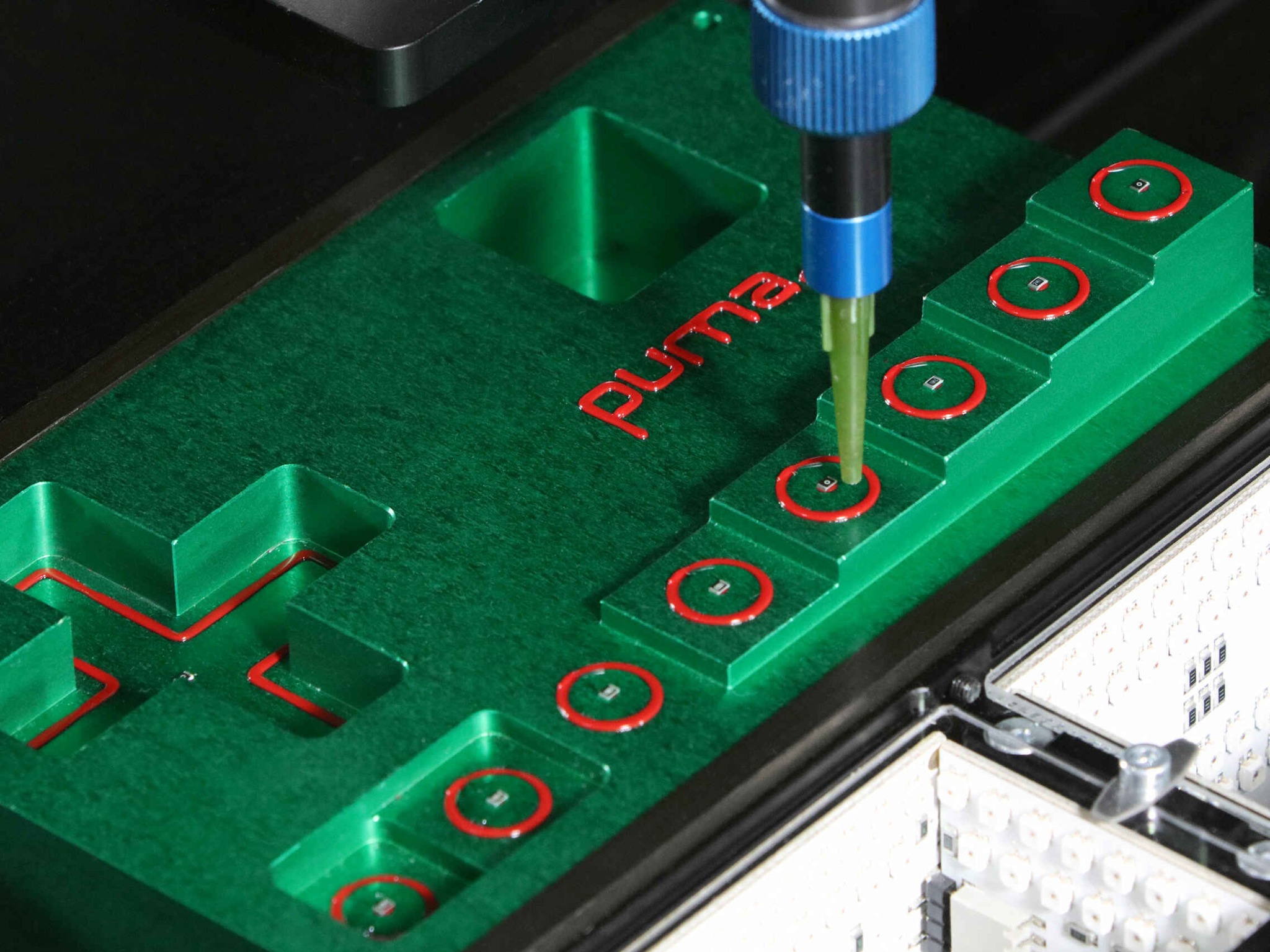

- Highspeed placing and dispensing in single pass-through
- 1, 2 or 4 placement-axes and 1-2 dispense processes
Productivity
- Optimum 18100 cph, up to 54300 cph inline

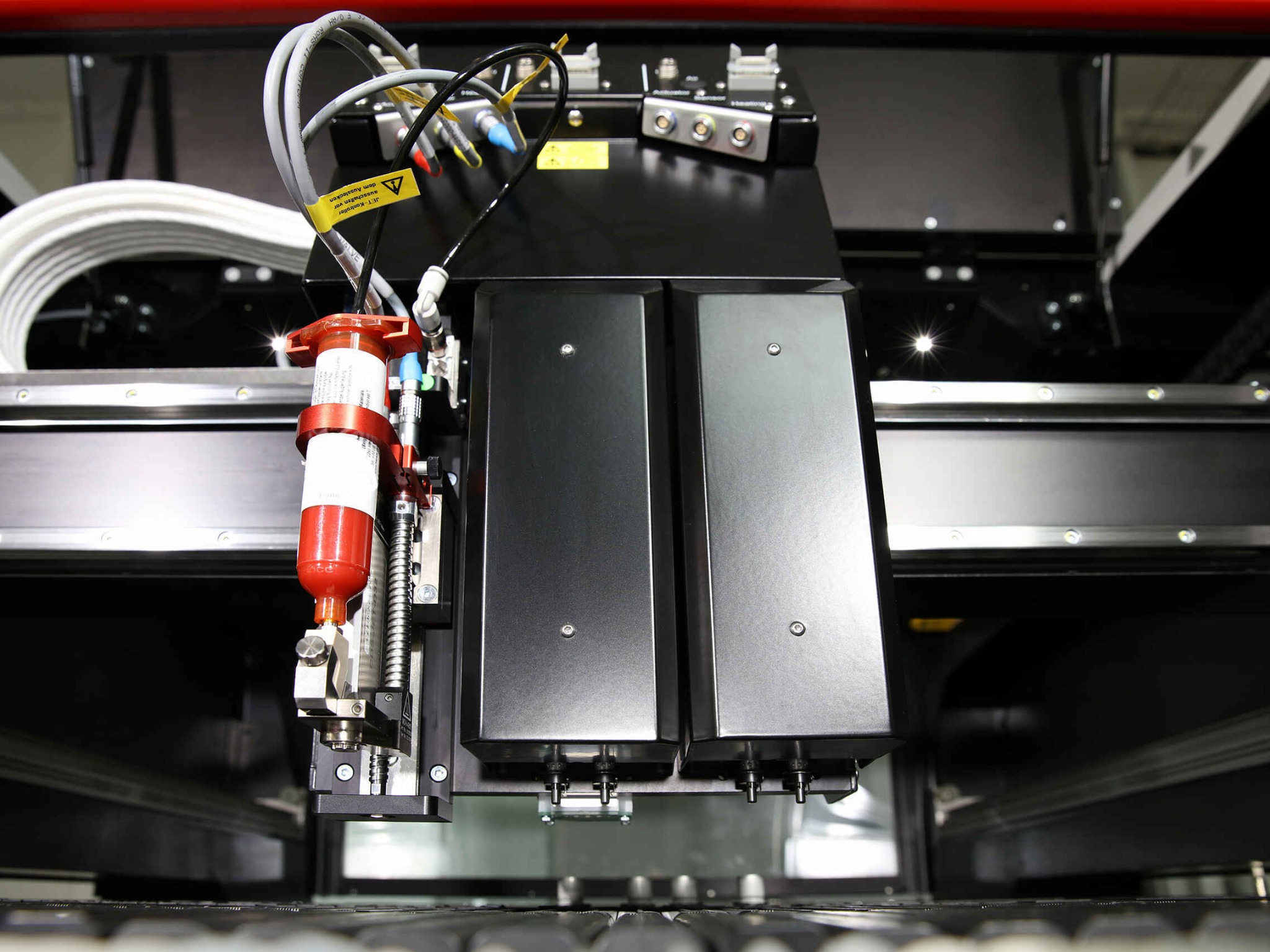

- Optimum jetting speed 180'000 - 720'000 dots/h
Small Footprint
- Up to 280 Feeder on 2 m? (up to 420 inline)
- PCB size 560 x 610 mm, optional 1800 x 610 mm

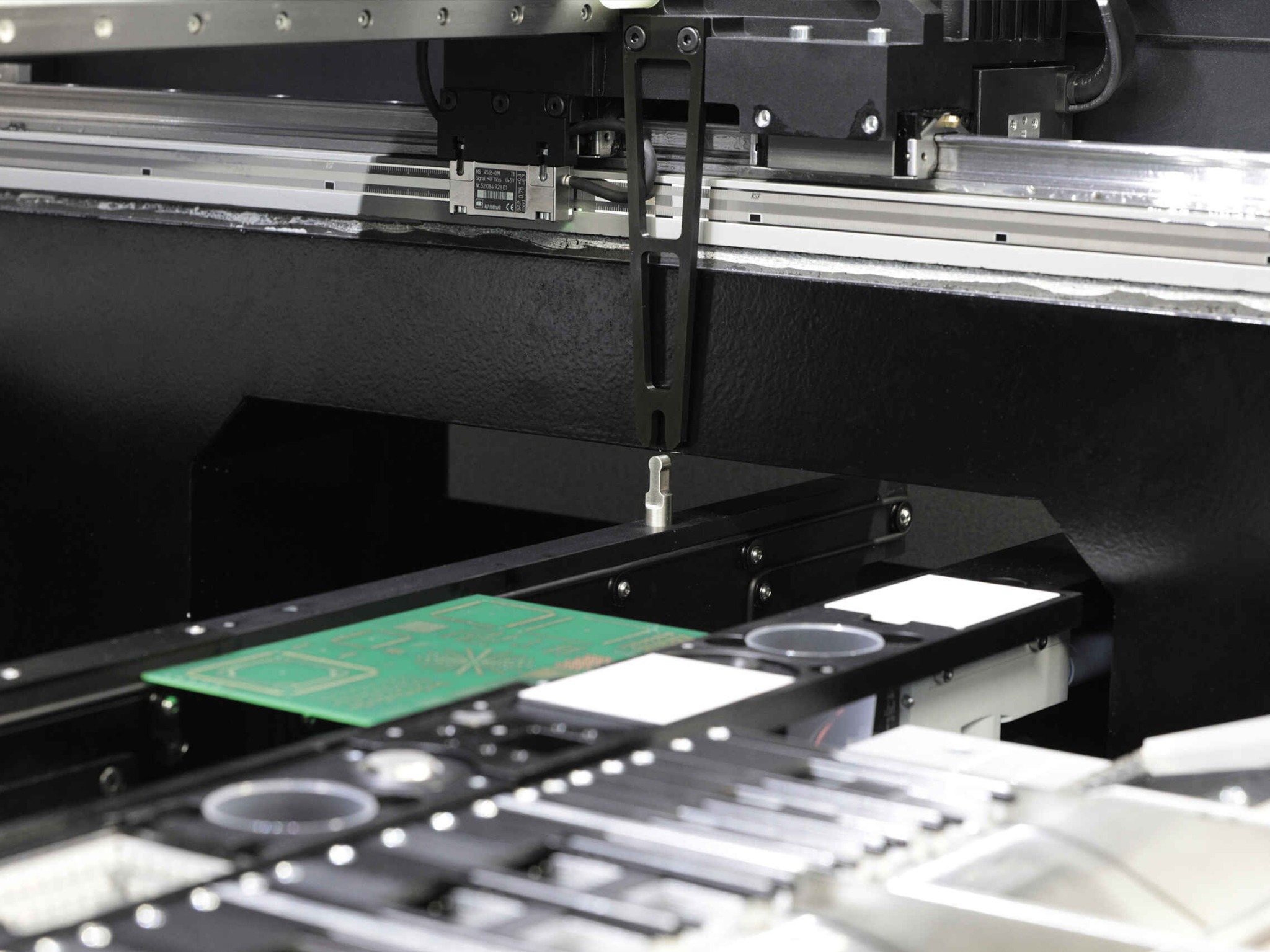

Mineral Cast
- No vibration, symmetrical mineral casting
- No warpage, no thermal drift
Quick Changeover
- Nonstop production, intelligent smart feeder
- Nonstop feeder and production changeover

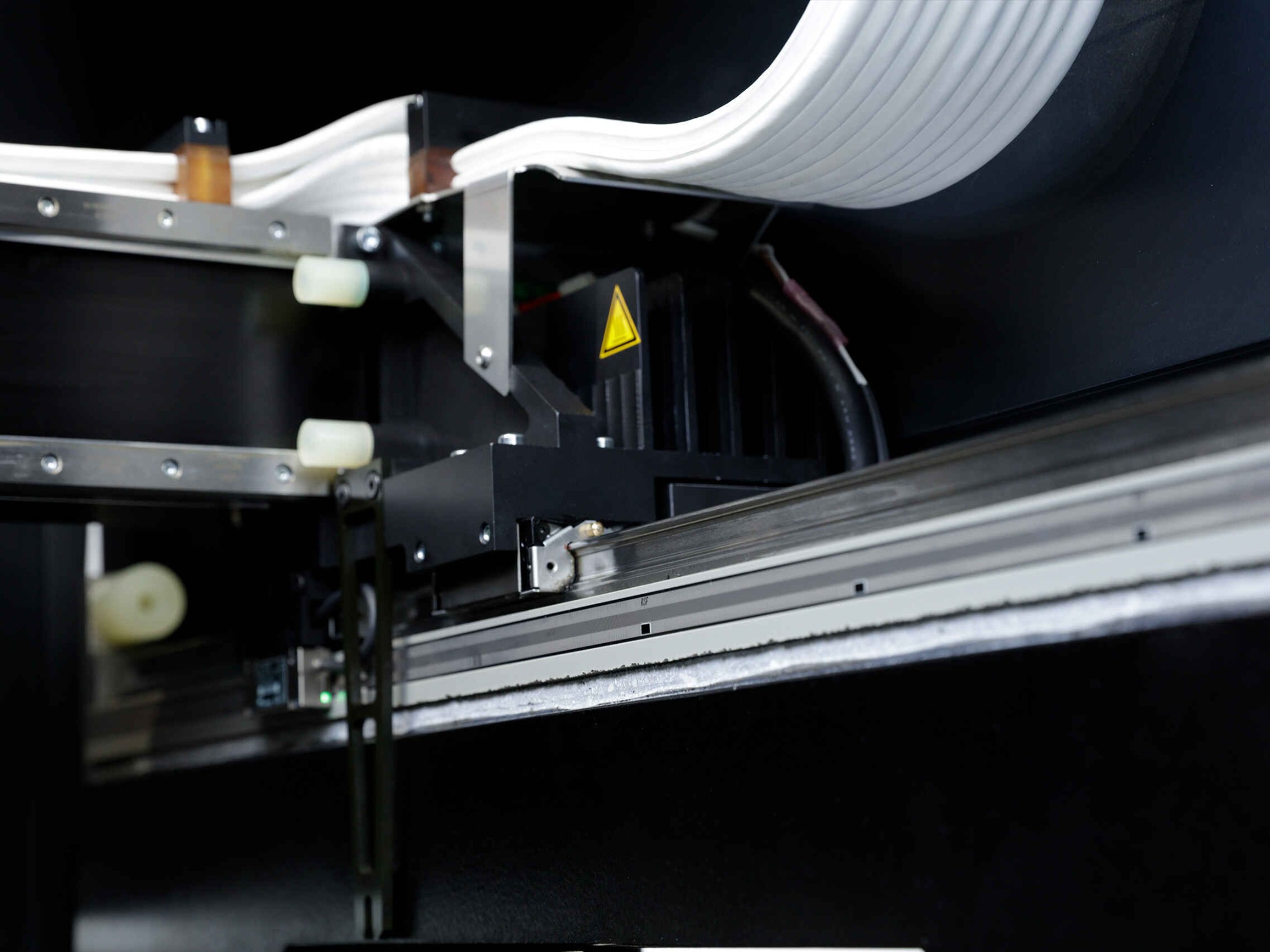

Linear Motors
- Fast, reliable double drive linear motors
- No maintenance, longest lifetime
Technical Specifications | Puma 4 | Puma 2 | Puma |
Productivity: Optimum placement speed | 18’100 cph (4-axes) | 11’200 cph (2-axes) | 6’700 cph (1-axis) |
Productivity: Optimum jetting speed | System 180’000 dots/h - Valve 720’000 dots/h | System 180’000 dots/h - Valve 720’000 dots/h | - |
Feeder capacity 8 mm Tape | 280 (160 inline) | 260 (140 inline) | 260 (140 inline) |
Component size range | | 008004 (imp.) - 80 x 80 mm | (Note specs for details) |
Placement accuracy (x, y) | | Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ) | |
Max. PCB dimensions | 560 x 610 mm (22 x 24“) | optional 1’800 x 610 mm (71 x 24“) | |
Dimensions: Machine footprint | | 1’557 x 1’357 mm (61 x 53“) | |
Essemtec Application - Puma and Fox on the hunt
Application clip of our Pick-and-Place "beasts" Fox and Puma. All Scenes from our product videos raw in real-time. No fast-forward, no effects, no post stabilisation.
Essemtec leads the industry in adaptive SMT pick-and-place equipment for both high-speed- and micro-dispensing, as well as an intelligent production storage and logistic systems. Our products are equipped with user-friendly software packages, enabling flexible mounting and dispensing design that is unique in the market, as well as extensive and efficient material management. The combination of printed circuit board (PCB) placement accuracy, speed, and high-quality engineering makes our offerings unique. Equipped with the most up-to-date technology, Essemtec products allow easy programming and operation for a wide range of applications.
