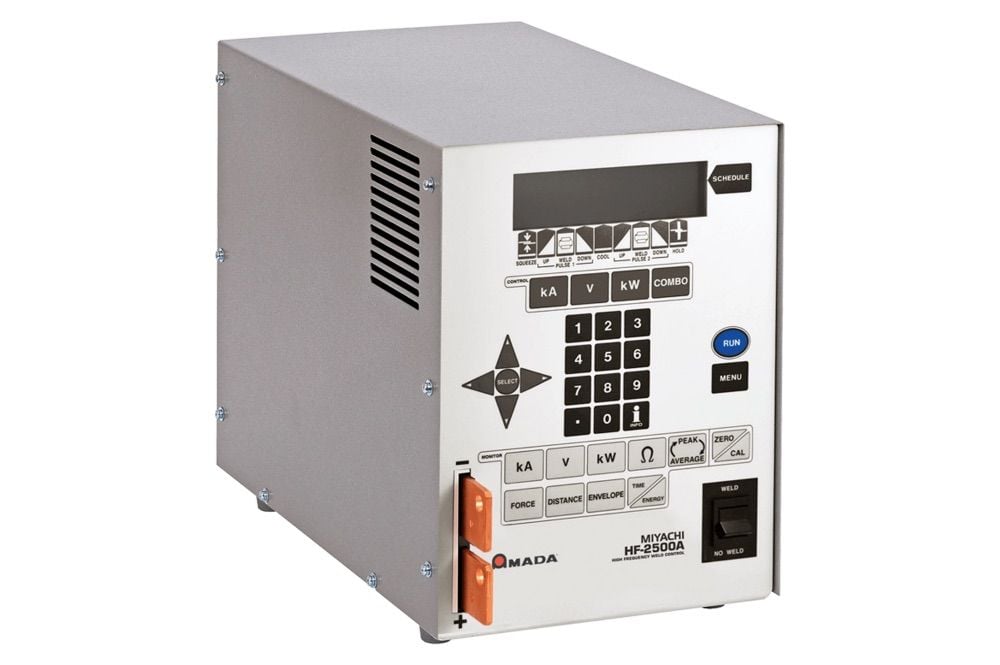

The HF-2500A high frequency inverter spot welder addresses the challenges of micro welding for a wide range of applications. Precise control of weld energy with high speed closed loop feedback and weld quality tools ensure high yields for the most demanding welding applications. Built in the USA, the HF-2500A high frequency inverter spot welder may be used in conjunction with one of our many weld heads as a single operator benchtop resistance welder and is also well-suited for integration into semi or fully automated resistance welding systems.
- Constant current, voltage, and power modes
- Monitors energy and resistance
- 2400 A maximum
- 25 kHz feedback
- Active Part Conditioning (APC)
- Pre-Weld Check
- Weld to Limits
Key features
- Linear DC Welding Controls - UB Series
- Advanced closed-loop analog control yields repeatable and stable programmable waveforms
- Extremely fast rise times permit shorter weld times, less part deformation, longer electrode life, and greater weld strength with more part ductility
- Built-in monitor with graphical screen shows visual trace of energy over time, aiding in weld parameter optimization
- Side mounted weld cables and compact unit size increase installation options
- Single phase power input and simple I/O allows for easy setup and versatility of use
Available Models
AMADA Low Power Linear DC Micro Spot Welder, UB-500A
Technical specifications | |
Technology | Linear DC |
Output range | 5A - 500A, 10V, 4.9kW |
Weld period range (ms) | A: 0 - 99, B: 0 - 999 |
Output control mode | Current, voltage, power, combo |
Open/closed loop | Closed |
Built-in monitor | Yes |
Automation ready | Yes |
Input power | 88 - 264 VAC |
Single or 3 phase | Single |
Size (L x W x H) | 15 in x 8.4 in x 12 in (381 mm x 213 mm x 305 mm) |
Weight | 22kg |
The UB-500A linear DC micro spot welder provides unsurpassed levels of control for resistance micro spot welding and thermocompression bonding.
With a max output of 500 A, UB-500A is a linear DC control with four feedback modes designed to adapt to part and process variables. This micro spot welding machine should be used for smaller applications where closed-loop feedback control and fast response times are required. Safety critical applications such as those found in the medical and automotive markets will benefit from UB-500A’s precision low energy control.
A successor to model UB25, and built in the USA, the UB-500A features a variety of updates, including greatly improved waveform control and faster rise time, as well as new side-mounted buss bars with threaded inserts for mounting weld cables, simplified rear panel I/O connections, and an on/off switch on the front for increased convenience.
- Four control modes: current, voltage, power and V-A (voltage-current)
- Single phase input
- Compact size
- Dual pulse schedules
- Precisely controlled repeatable waveform
- Very fast rise time
AMADA Low Power Linear DC Micro Spot Welder, UB-1500A
Technical specifications | |
Technology | Linear DC |
Output range | 15A - 1500A, 10V, 9.9kW |
Weld period range (ms) | Weld 1: 0 - 99, Weld 2: 0 - 999 |
Output control mode | Current, voltage, power, combo |
Open/closed loop | Closed |
Built-in monitor | Yes |
Automation ready | Yes |
Input power | 88 - 264 VAC |
Single or 3 phase | Single |
Size (L x W x H) | 15 in x 8.4 in x 12 in (381 mm x 213 mm x 305 mm) |
Weight | 22kg |
The UB-1500A linear DC micro welder provides unsurpassed levels of control for resistance micro welding and thermocompression bonding.
With a max output of 1500 A, UB-1500A is a linear DC control with four feedback modes designed to adapt to part and process variables. Built in the USA, the UB-1500A micro welding machine should be used for smaller applications where closed-loop feedback control and fast response times are required. Safety critical applications such as those found in the medical and automotive markets will benefit from UB-1500A’s precision low energy control.
UB-1500A features greatly improved waveform control and faster rise time, as well as new side-mounted buss bars with threaded inserts for mounting weld cables, simplified rear panel I/O connections, and an on/off switch on the front for increased convenience.
- Four control modes: current, voltage, power and V-A (voltage-current)
- Single phase input
- Compact size
- Dual pulse schedules
- Precisely controlled repeatable waveform
- Very fast rise time
AMADA Linear DC Spot Welder, UB-4000A
Technical specifications | |
Technology | Linear DC |
Output range | 200A - 4000A, 10V, 25kW |
Weld period range (ms) | A: 0 - 99, B: 0 - 999 |
Output control mode | Current, voltage, power, combo |
Open/closed loop | Closed |
Built-in monitor | Yes |
Automation ready | Yes |
Input power | 88 - 264 VAC |
Single or 3 phase | Single |
Size (L x W x H) | 15 in x 8.4 in x 12 in (381 mm x 213 mm x 305 mm) |
Weight | 22kg |
The UB-4000A linear DC resistance welding control is a 200-4000 amp linear DC control with four feedback modes designed to adapt to part and process variables. Weld energy may be programmed in current, voltage, power, or V-A, in increments as short as .01 milliseconds making this spot welder ideal for small applications in the electronic component and battery pack markets.
A successor to model DC25, and built in the USA, the UB-4000A features a variety of updates, including greatly improved waveform control and faster rise time, as well as new side-mounted buss bars with threaded inserts for mounting weld cables, simplified rear panel I/O connections, and an on/off switch on the front for increased convenience.
- Four control modes: current, voltage, power and V-A (voltage-current)
- Single phase input
- Compact size
- Dual pulse schedules
- Precisely controlled repeatable waveform
- Very fast rise time
