AMADA - Laser Workstation - WL-100A

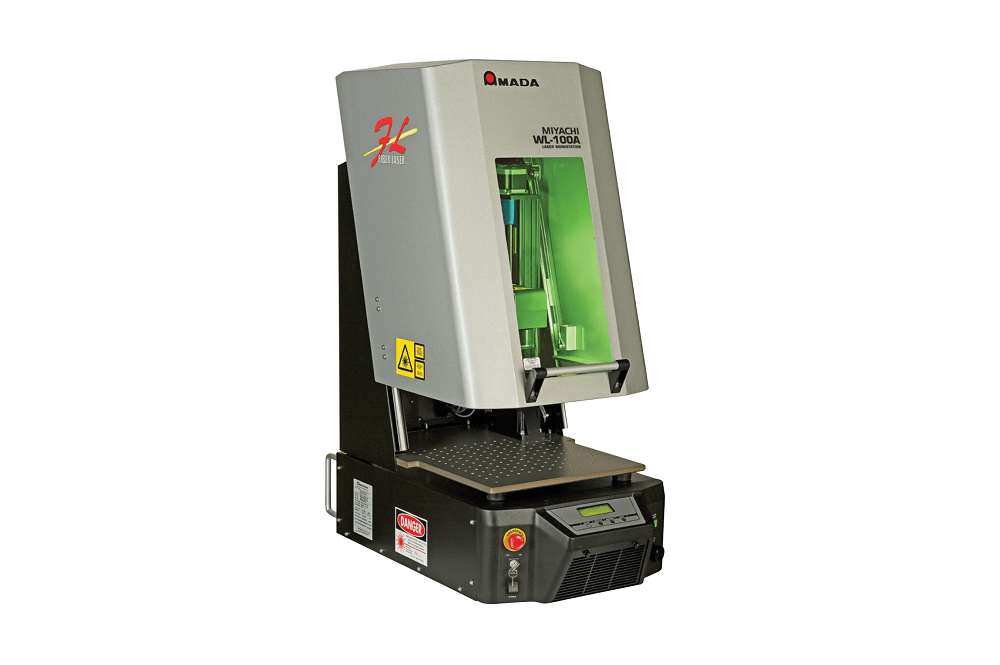

AMADA's WL-100A is a highly configurable, compact unit designed for lean manufacturing and offering the widest range of marking capability in its class.
Standard options include a rotary stage to tailor the machine to your specific process.
Integrated with AMADA’s popular LM-F Series fiber markers, this unit has the same GUI and interface for easy transfer from prototype to production phase.
Key features
- Compact, workstation designed for benchtop operation – minimal workspace needed
- Fast and precise motorized Z-axis for easy focus adjustment (programmable axis optional)
- Easy access to parts and tooling
- Large viewing window for easy mark monitoring
- F-Theta 100 mm, 160 mm and 254 mm lens options for marking various parts and sizes
- Fume extraction port with flexible tubing

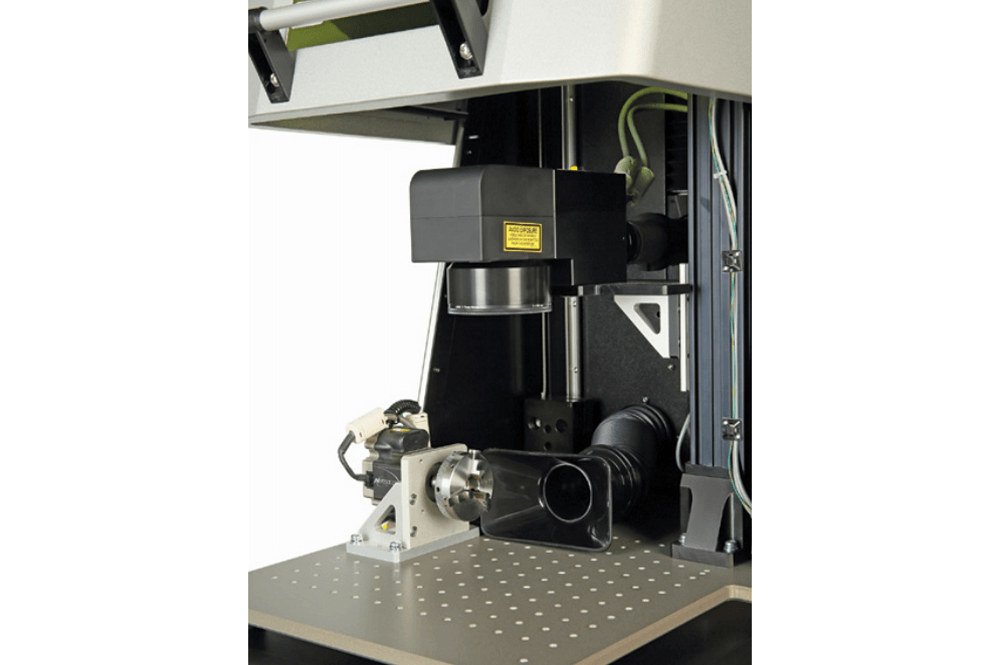

- Compact, motorized rotary axis for marking cylindrical parts (optional)
- M6 pattern mounting base plate for easy part fixturing
- Integrated with AMADA’s industrially proven LM-F Series Fiber Laser Markers (10-70 W)
- Communication Protocols: RS-232, EtherNet/IP™, Ethernet TCP/IP, Digital
Software features
- Powerful, user-friendly Windows® based job editor
- Easy to import graphics
- Multi language support
- Advanced DXF filter with process optimization
- Password protected security lockout
- Touch screen GUI Enabled
- Windows 10 compatible
Mark types
- Line-art graphics: CAD, linedrawings, logos
- Shaded graphics: photos, halftones & grayscale artwork
- TrueType® fonts, filled or outline-only
- Single point or drill object arrays
- 1D and 2D (Data matrix and QR code) barcodes
- MS AutoDate, MS TextMerge, serialization, and barcode
Technical specifications
Electrical | Single phase, 90 -130 VAC/180 - 260 VAC, 50/60 Hz, 10 A |
Standard lens options | f-theta - 100 mm, 160 mm, 254 mm |
Laser protection class | CDRH Class 1 |
Software | WinLase® |
Available markers | All LM-F Series fiber laser markers (10 - 70 W) |
Axes options | Z, Rotary |
Axes types | Manual Z-jog, programmable Z, direct drive rotary |
Work piece size | 100 mm - 10 in x 8 in x 8 in (250 mm x 200 mm x 200 mm)
160 mm - 8 in x 8 in x 8 in (200 mm x 200 mm x 200 mm)
254 mm - 3.8 in x 8 in x 8 in (98 mm x 200 mm x 200 mm) |
Work piece rotary part size | Up to 2.5 in (60 mm) diameter |
Dimensions (LxWxH)
- Enclosure closed
- Enclosure fully opened | 31.2 in x 17.4 in x 33.9 in (814.5 mm x 441.1 mm x 860.8 mm)
31.2 in x 17.4 in x 52 in (814.5 mm x 441.1 mm x 1320.8 mm) |
Weight | 150 lb (68 kg) |
AMADA WELD TECH is part of the Amada group and known as an innovator in finding creative joining and metal processing solutions.
AMADA WELD TECH is the market leader in developing, building and servicing systems, machines and components for Laser Welding, Laser Marking, Laser Cutting & Processing, Resistance Welding, Hot Bar Bonding, Micro Arc Welding, and Hermetic Sealing. We design and manufacture industry-leading product families for the global market. These product families include OP-AWS3-A, EZ-Air, Jupiter, Markermotion, NH Series, UF Series and Weld Checker. Our legacy brands MIYACHI UNITEK, MIYACHI PECO, MIYACHI EAPRO and MACGREGOR will be united into one brand: “MIYACHI”.
