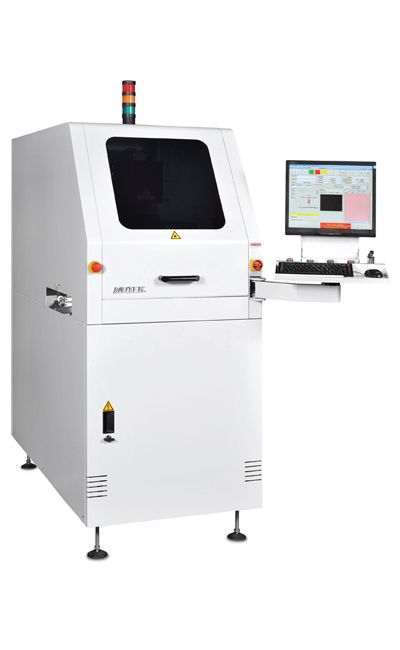

The Laser Marking Cell Series 5 (NTM5610-X) is specially designed to accurately mark PCB within a production line or as a stand alone system. A 3-axis galvo-head allows marking on large area (350 x 350 mm) without using a X-Y gantry, thus resulting in short cycle time for large number of markings. The user friendly Windows based software allows easy programmable marking position and number of markings. Double sided marking is achievable with an optional integrated inverting unit.
This unit is used to mark text, barcode, 2D code & graphic onto PCBs.
Key Features
- 10 Watt CO2 (Class 4)
- Class 1 laser protected housing
- Air cooling system
- Fume extraction device
- User friendly software
- Short cycle time
- Selectable by-pass operation
- Automatic width adjustment conveyor
- PCB side clamping
- Short product change-over time
- Industrial PC & 21.5” LCD monitor
- Integrated inverting unit for double-sided marking (Optional)
- Barcode scanner or camera for readability check (Optional)
- SMEMA compatible
Technical Specifications
| | Laser Marking Cell Series 3 | Laser Marking Cell Series 5 |
|---|
| Marking Area | 105 × 105 mm per position
460 × 460 mm total coverage | 350 x 350 mm total coverage |
|---|
| Cell Size | ≥ 0.127 mm | ≥ 0.195 mm |
|---|
| Laser Wave Length | 10.63 um | 10.63 um |
|---|
| Conveyor speed | 24 m/min. | 24 m/min. |
|---|
| PCB transfer time | 士 6 secs | ≤ 6 seconds |
|---|
| PCB Width | 65 - 460 mm | 65 - 460 mm |
|---|
| PCB Length | 80 - 508 mm | 80 - 508 mm |
|---|
| Power Source | 100, 230VAC 1 Ph | 100, 230VAC 1Ph |
|---|
| Power Consumption | 1660VA max. | 1600VA max. |
|---|
| Air Pressure | 5 bar | 5 bar |
|---|
| Air Consumption | 20 Itr/min. max. | 20 It/min. max. |
|---|
Model No. | Size | Machine Dimension (mm) Lx W x H | Fixed Point to Front Dimension (X) | Weight (Approximately) |
NTM5610-X | NTM5610-X | 850 × 1558 × 1752 | 236 mm | 640 kg |
Nutek Private Limited (Nutek) conceptualizes, designs, and manufactures automated production systems to customer specifications. Nutek is highly regarded for its world-class quality products, produced with the flexibility and nimbleness demanded by its customers all over the world.
