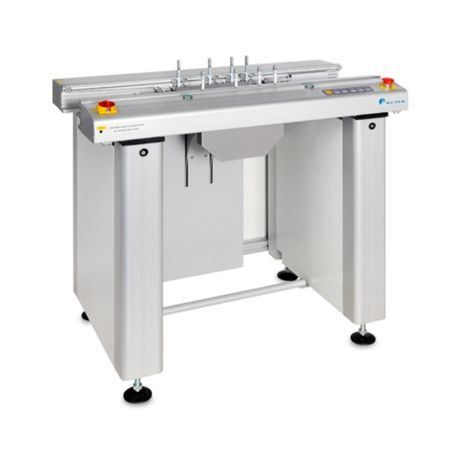

Nutek - PCB Reject Conveyor - Standard Series
Faulty boards can be lifted up for visual inspection without interrupting the PCBs flow.
Features
- User friendly ‘soft touch’ LED membrane control panel
- Includes ‘reject’, ‘inspect’ and ‘pass through‘ modes
- Modular design
- Stability enhanced by ‘robust design’
- Ergonomically designed arm rest
- Smooth and parallel width adjustment
- Different lengths available upon request
- Variable speed control
- SMEMA compatible
- Patented (SG Patent No.: 91261)
Technical Specifications
| Conveyor Concept | Belt |
|---|
| Conveyor Speed | 0.5 - 14 m/min. or specify |
|---|
| Power Source | 100, 230VAC 1Ph |
|---|
| Power Consumption | 150VA max. |
|---|
| Air Consumption | 10 Itr/min. max. |
|---|
Available Models
| Model No. | Size | Machine Dimension (mm)
L x W x H | Fixed Point to Front
Dimension (X) | Weight
(Approximately) |
|---|
| NTM2500-M | M | 1000 x 667 x 980 mm | 186 mm | 80 kg |
|---|
| NTM2500-L | L | 1000 x 824 x 980 mm | 186 mm | 90 kg |
|---|
Nutek Private Limited (Nutek) conceptualizes, designs, and manufactures automated production systems to customer specifications. Nutek is highly regarded for its world-class quality products, produced with the flexibility and nimbleness demanded by its customers all over the world.
