AMADA - DC Inverter Welding Power Supply, IS-300A
Fast rise time
AMADA Transistor-controlled welding power supplies have rise times 4.5 times faster than that of conventional* models. high quality welding can be accomplished in a short period of time on small work pieces.
* Compared with conventional model MD-1500E
No welding transformer needed
The welding current is directly controlled with fast switching by transistor, so no welding transformer is required.
Built-in pre-check function
Applying current on the workpiece before the main current, it is possible to judge whether or not there is a workpiece set on the electrodes, and to evaluate the status of workpiece.
Polarity switchable type
This can eliminate the Peltier effect (polarity effect) and provide uniform nugget diameters on series welding.
Two-channel type
Two weld heads can be controlled by one power supply. It contributes to cost and space savings.
Available models
AMADA Transistor Welding Power Supplies, MD-B4000B
Type | Polarity switching |
Power requirements | Single-phase, 100 to 120VAC or 200 to 240VAC 50/60Hz |
Max. power consumption | 350W |
Max. weld current | 5000A |
Max. weld voltage | 30V |
Squeeze timer | 000 to 999ms or 000 to 999ms x 10 |
Precheck timer | 0.00 to 1.00ms for welding, 2ms for evaluation |
Upslope timer | 0.00 to 9.99ms (included in Weld and Weld 1) |
Weld or Weld 1,2 timer | 0.00 to 9.99ms |
Cool timer | 0.00 to 9.99ms |
Downslope timer | 0.00 to 9.99ms (included in Weld and Weld 2) |
Hold timer | 000 to 999ms |
Dimensions (mm) | 172W x 390D x 400H |
Weight | 28kg |
AMADA Transistor Welding Power Supplies, MD-B4000B
Type | Polarity switching |
Power requirements | Single-phase, 100 to 120VAC or 200 to 240VAC 50/60Hz |
Max. power consumption | 300W |
Max. weld current | 3000A |
Max. weld voltage | 30V |
Squeeze timer | 000 to 999ms |
Precheck timer | 0.00 to 1.00ms for welding, 2ms for evaluation |
Upslope timer | 0.00 to 9.99ms (included in Weld and Weld 1) |
Weld or Weld 1,2 timer | 0.00 to 9.99ms |
Cool timer | 0.00 to 9.99ms |
Downslope timer | 0.00 to 9.99ms (included in Weld and Weld 2) |
Hold timer | 000 to 999ms |
Dimensions (mm) | 172W x 390D x 269H |
Weight | 18kg |

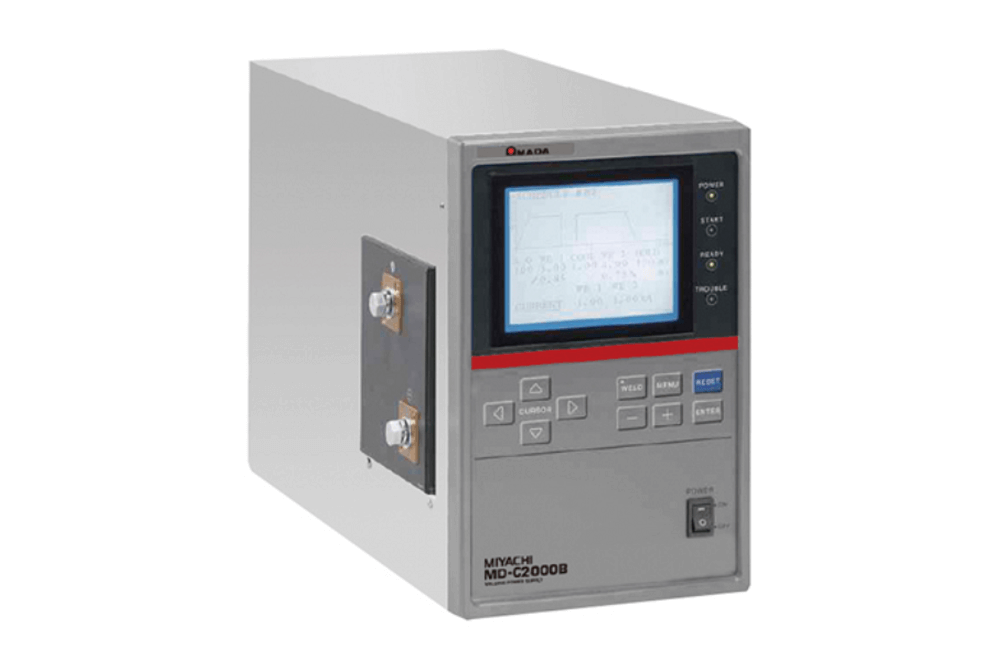

AMADA Transistor Welding Power Supplies, MD-C2000B
Type | Two channel |
Power requirements | Single-phase, 100 to 120VAC or 200 to 240VAC 50/60Hz |
Max. power consumption | 300W |
Max. weld current | 3000A |
Max. weld voltage | 30V |
Squeeze timer | 000 to 999ms |
Precheck timer | 0.00 to 1.00ms for welding, 2ms for evaluation |
Upslope timer | 0.00 to 9.99ms (included in Weld and Weld 1) |
Weld or Weld 1,2 timer | 0.00 to 9.99ms |
Cool timer | 0.00 to 9.99ms |
Downslope timer | 0.00 to 9.99ms (included in Weld and Weld 2) |
Hold timer | 000 to 999ms |
Dimensions (mm) | 172W x 390D x 269H |
Weight | 18kg |
