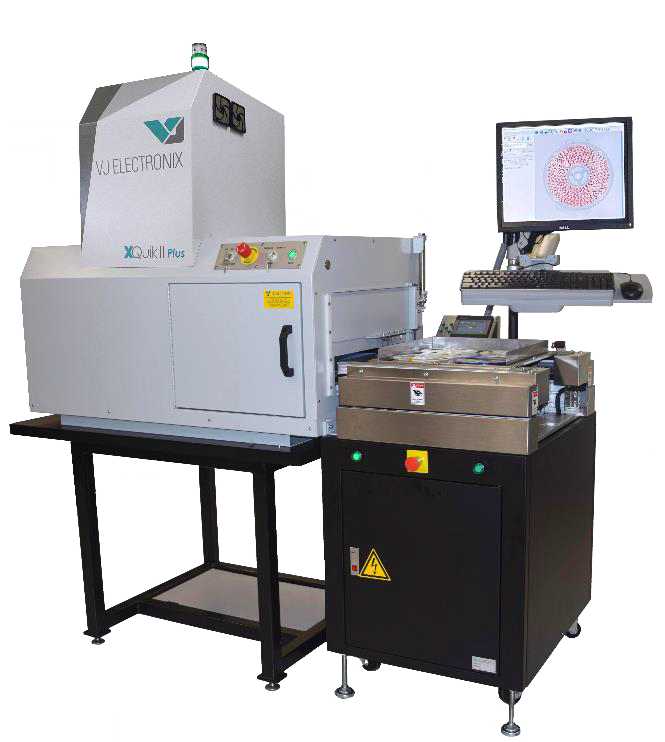

VJ Electronix - X-ray Component Counter - XQuik II Plus Autoload


VJ Electronix - X-ray Component Counter - XQuik II Plus Autoload

The system’s advanced detection algorithms automatically recognize components without the need for cumbersome models, libraries, or cloud connection, making it quick and simple to use. Unique imaging technology provides the greatest count accuracy and reliability.
The XQuik’s flexible MES interface is easily configured to communicate with any inventory control system. Automatic detection determines whether a single, or up to four small reels are loaded, and keeps track of reel location, eliminating the risk of operator error.

Key Features

  • One button operation
  • Reel location and size automatically detected
  • Automatic recognition of components
  • Automatic inventory updates to your MES

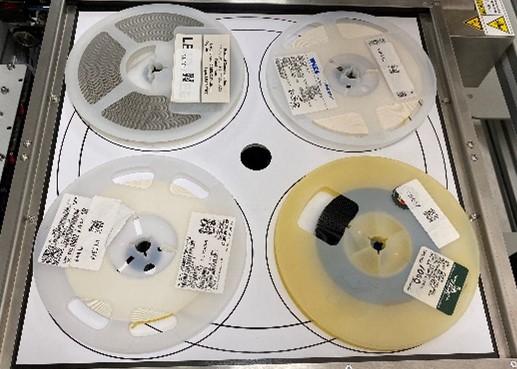

  • Scanning of (4) 7” reels simultaneously
  • Scanning of 13” or 15” reels
  • Industrial PC: Microsoft Windows 10

Technical Specifications

Machine Footprint39 x 43 x 93in
(1000 x 1080 x 2360mm)
Machine Weight2400lb (1100kg)
Maximum Power1000W
Electrical Connection100 – 250 VAC
Imaging Resolution130μm
Power/Voltage/Current56W / 60kV / 1.0mA
CertificationIEC, CE, & FDA

 VJ Electronix was founded in 2003 as a new division of VJ Technologies, a leading global provider of X-ray inspection solutions, to focus on the Electronics Manufacturing industry. Since 2003, VJ Electronix has grown into a global leader of X-ray-based Component Counting, X-ray Inspection and Circuit Board Rework systems for the Electronics Manufacturing industry winning industry awards in almost every year since its inception.
