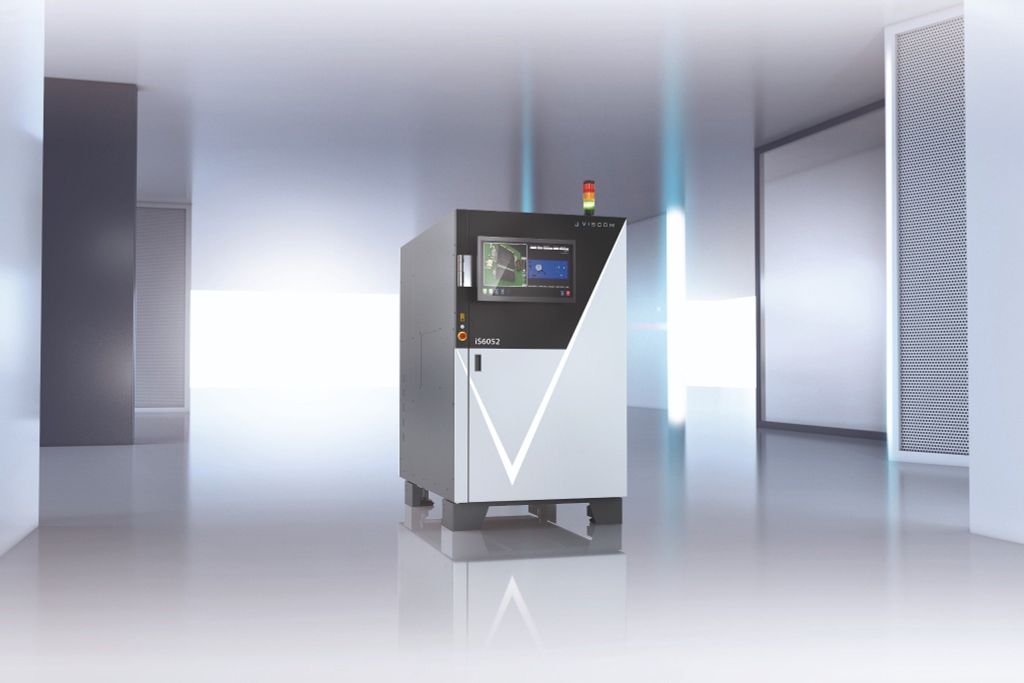

iS6052 THT Inspection – unmatched THT quality control from above
Introducing the iS6052 THT inspection system, specifically designed to ensure accurate component placement on THT (Through-Hole Technology) boards. Utilizing advanced AOI (Automated Optical Inspection) technology, the iS6052 THT system conducts inspections from above the printed circuit board. This unique approach distinguishes it from conventional THT inspection systems, which typically inspect boards from below. With its focus on accuracy and efficiency, the iS6052 THT system provides manufacturers with a reliable solution for quality assurance in THT assembly processes.
Highlight
- Robust system design
- Ideal system configuration with respect to costs/benefits
- High inspection speed
- Minimal time and training requirements thanks to Viscom standard software
- Flexible integration into existing productions
- Improved ergonomic design
Connectivity
- Global libraries, global calibration: transferability to all systems
- Intelligent software add-ons such as integrated verification or Viscom Quality Uplink for effective networking
- Traceability, offline programming, statistical process control
- Communication with MES systems
- Independent real-time image processing with Viscom analysis tools
- High-performance OCR software
- optional connection to the digital multi-purpose platform vConnect
Inspection
- Components: THT
- Defects/characteristics: Presence, XY position, pin height
Viscom AG is a leading global provider of automatic optical and X-ray inspection systems for electronics production. Viscom AG develops, manufactures, and sells high-quality inspection systems. The product portfolio encompasses the complete bandwidth of optical and X-ray inspection operations, especially in the area of electronics assemblies.
