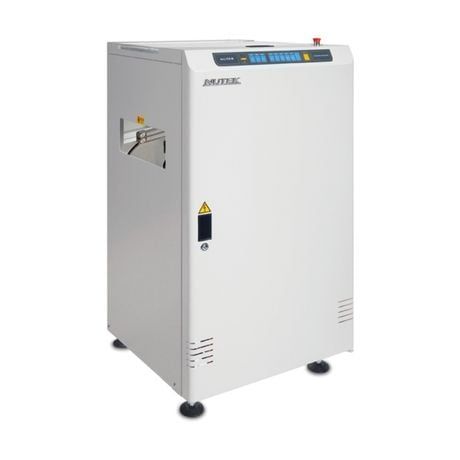

Nutek - Traffic Controller - PCB Inverter - Standard Series
This unit is used to invert PCBs (180°) for “double-sided” process.
Features
- Equipped with built-in torque limiter to ensure highest level of safety
- "Top safety cover" can be opened for easy access to hardware during maintenance
- User friendly "soft touch" LED membrane control panel
- Smooth and precise inverting motion
- Subsequent inversions continue from the last unloading position (short cycle time)
- Small machine footprint
- SMEMA compatible
Technical Specifications
| Cycle Time | Average 8 seconds |
|---|
| Power Source | 100, 230VAC 1Ph |
|---|
| Power Consumption | 200VA max. |
|---|
| Air Pressure | 4-6 bar |
|---|
| Air Consumption | 1.1 It/min. max. |
|---|
| PCB Thickness | 3 mm max. |
|---|
Available Models
| Model No. | Size | Machine Dimension (mm)
L x W x H | Fixed Point to Front
Dimension (X) | Weight
(Approximately) |
|---|
| NTM0300-M | M | 500 x 730 x 1330 mm | 234 mm | 110 kg |
|---|
| NTM0300-L | L | 653 x 870 x 1330 mm | 234 mm | 120 kg |
|---|
