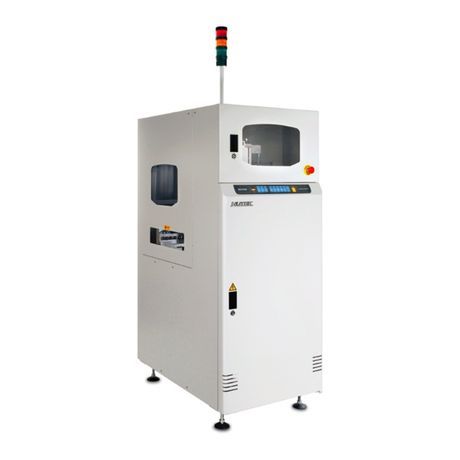

Nutek - Multi Function Cage-type Buffer - Standard Series
Nutek - Multi Function Vertical Buffer unit is used as a buffer between SMD machines.
Features
- User friendly ‘soft touch’ LED membrane control panel
- First In First Out (FIFO), Last In First Out (LIFO) and pass through operating modes
- Flexible repositioning of ‘fingers’ (support bars) to accommodate jagged edge PCBs
- Durable rollers as conveying medium (no replacement of belts needed)
- Fast, smooth and precise indexing (frequency inverter controller)
- Threshold system provided
- Smooth and parallel width adjustment (leadscrew)
- Small machine footprint
- SMEMA compatible
Technical Specifications
| Maximum PCBs Capacity | 26 pcs or specify |
|---|
| Maximum Load | 2 kg/PCB |
|---|
| Cycle Time | Average 15 seconds |
|---|
| Indexing Pitch | 20 mm or specify |
|---|
| Power Source | 100, 2Nhóm sản phẩm30VAC 1Ph |
|---|
| Power Consumption | 350VA max. |
|---|
| Air Pressure | 4 - 6 bar |
|---|
| Air Consumption | 2 Itr/min. max. |
|---|
Available Models
| Model No. | Size | Machine Dimension (mm)
L x W x H | Fixed Point to Front
Dimension (X) | Weight
(Approximately) |
|---|
| NTM1400-M | M | 500 x 980 x 1700 mm | 425 mm | 210 kg |
|---|
| NTM1400-L | L | 653 x 1080 x 1700 mm | 425 mm | 240 kg |
|---|
