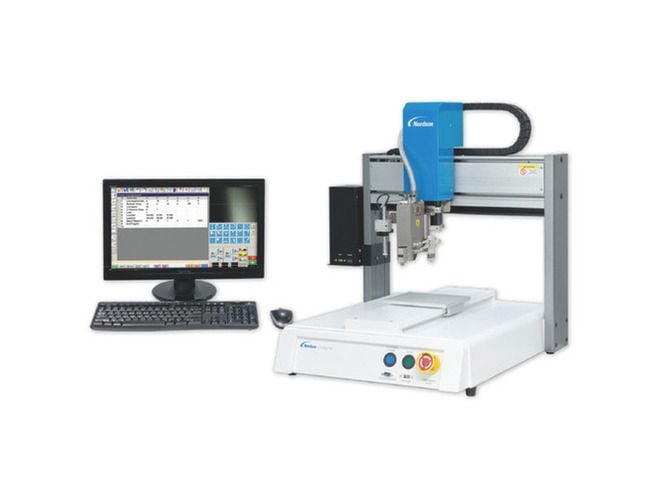

Nordson - Hot-melt Adhesive Systems - Unity™ Basic Series

The Unity Basic Series systems are engineered for precise hot melt dispensing using Nordson Unity dispensing systems. The various platform sizes make them an ideal solution for batch processing of critical hot melt dispensing applications.

The easy-to-use Teach Pendant and the PC-based vision-guided teaching system—each option’s availability is based on the system chosen—provides an intuitive and straightforward set-up and programming process.

The Unity Basic Series systems’ three-dimensional motion control allows for simple programming of dots, lines, circles, arcs, and compound arcs. These systems can serve as a self-sustaining dispensing system or as a key station that is easily integrated into automated production lines.


  • Simplified setup and programming via intuitive icon-based Teach Pendant

  • Optional simple camera and UNITYMotion™ software make setup and programming intuitive

  • X/Y/Z tip location alignment sensor available

  • Reinforced X axis (on Unity U3X/U4X/U5X/U6X) increases system rigidity and improved accuracy

  • Upgradable to enhanced CCD vision camera with vision based bead compensation

  • On-screen preview of the dispensing path facilitates programming

  • Easy-to-use .dxf file conversion to program path

  • Wide range of work envelopes

  • Available in platforms ranging from 200 x 200 mm to 620 x 500 mm


  • Easy-to-use visual programming means operators learn quickly

  • Faster cycle and batch times

  • Easy integration into any manufacturing operation

  • Reduced production, material, and ownership costs

  • Consistent adhesive volume output of changing viscosity materials (with enhanced CCD vision option) Automated tip alignment saves reprogramming time

Available Options

  • CCD Vision Kit
  • Simple Vision Kit
  • High-precision Vision
  • Teach Pendant
  • Tip Alignment Kit
  • Tip Detection System
  • Tip Height Detection Kit

 For more than 60 years, Nordson has been at the forefront of designing and producing adhesive dispensing systems for manufacturing operations worldwide. Our products and systems help manufacturers reduce material consumption, increase production efficiency, and enhance product strength and durability.
