Heraeus Noblelight offers a broad range of UV low-pressure lamps manufactured from high quality quartz glass for disinfecting water, air and surfaces.
Available models

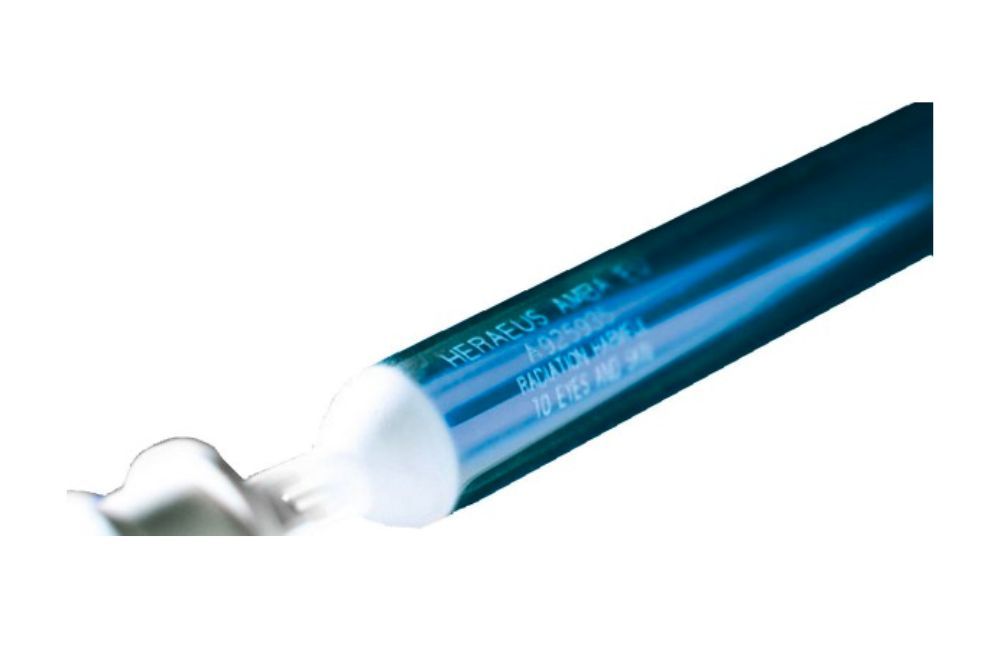

Amba® UV Curing Lamps
- Amba® lamps are associated with quality and reliability
- 200% performance guarantee for Amba® lamps
- 10,000 lamp types, also for unusual lengths, special output characteristics and MH additives
- more consistent and reliable curing processes due toStrong seals, immaculate quartz glass, high-quality electrodes and connectors Replacement lamps for all UV system manufacturers

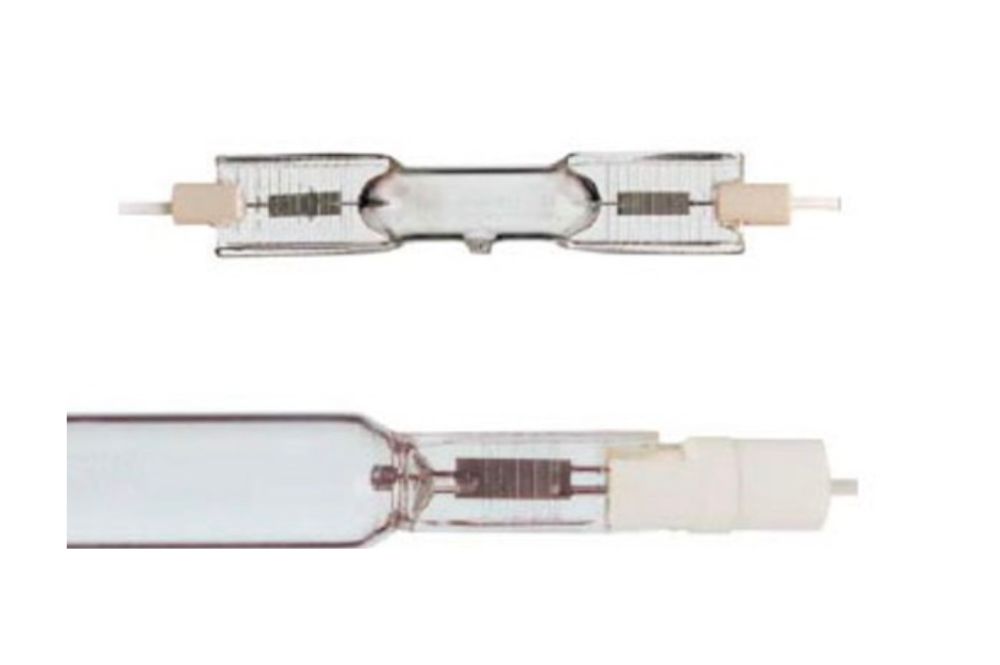

UV Medium-Pressure Lamps
- Very good properties at small size: compact UV systems can still be installed where throughput is high
- Low investment costs
- Fewer lamps needed
- More stability due to round seal in the base
- Spectrums for photochemical applications can be optimised by the use of additional metal halides
| Standard lamps | High performance lamps |
Preferred application | Disinfection | Disinfection and oxidation |
Efficient spectral range | 200 - 300 nm | 200 - 300 nm |
Specific electrical power | 80 - 120 W/cm | 120 - 250 W/cm |
Specific UVC radiant flux | 12 - 18 W/cm | 18 - 40 W/cm |
Power range | 0.4 - 10 kW | 1 - 60 kW |
Dimensions/lamp length | 4 - 150 cm | 7 - 200 cm |
Lamp diameter | 15 - 28 mm | 19 - 45 mm |
Surface temperature | 600 - 900°C | 800 - 900°C |
Typical service life | 1,500 - 10,000 h | 1,500 - 10,000 h |

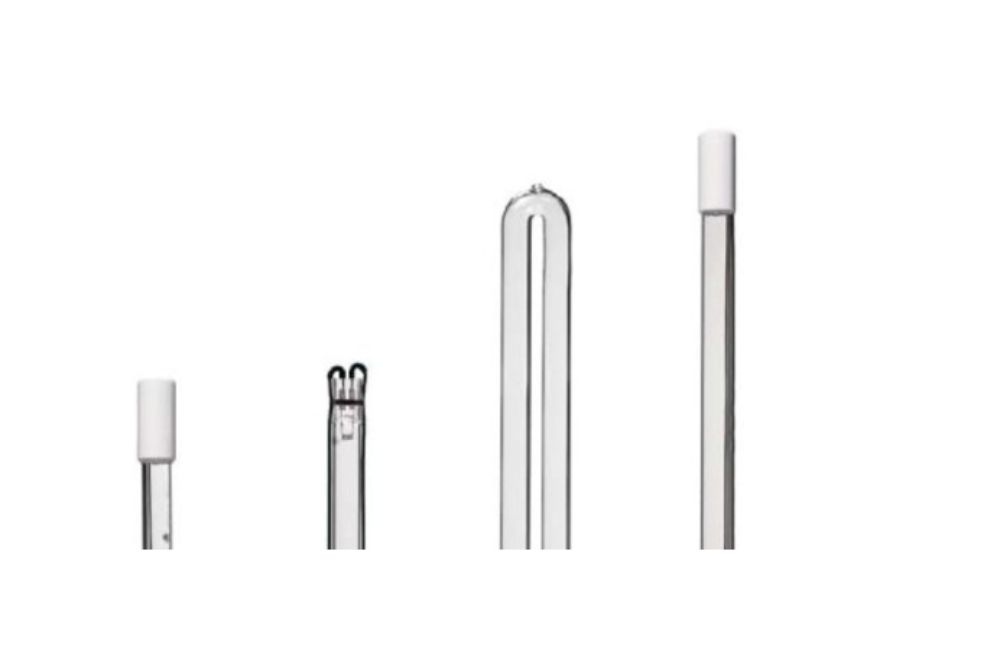

UV Low-Pressure Lamps
- High UV efficiency (40%)
- Low energy consumption
- UV lamps tailored to customer requirements
- Output 30% to 60% higher than with lamps made of soft glass
- Low surface temperature
| Ozone-free | Ozone-generating |
Spectrum: Wavelength | 254 nm | 185 nm, 254 nm |
Arc length | 10 – 150 cm | 10 – 150 cm |
Electrical power | 5 – 80 W | 5 – 80 W |
Typical UV efficiency at 254 nm | 40% | 40% |
Typical efficiency at 185 nm, natural quartz glass | - | approx. 6% |
Typical efficiency at 185 nm, synthetic quartz glass | - | approx. 9% |
Specific UVC flux | 0.1 – 0.4 W/cm | 0.1 – 0.4 W/cm |
Use at ambient temperatures | up to max. 40°C | up to max. 40°C |
Service life | 9,000 h with 30% decline of UV intensity | 9,000 h with 30% decline of UV intensity |

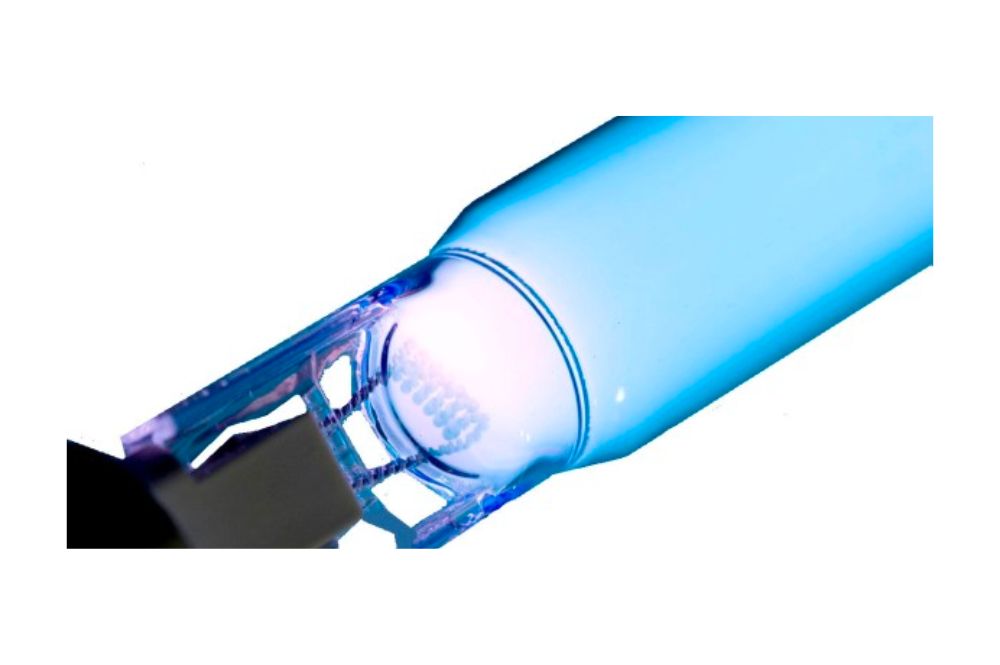

Amalgam UV Lamps
- Use at high ambient temperatures of up to 90°C
- Not affected by temperature fluctuations
- Energy-saving
- Low-cost alternative to medium-pressure lamps
- Highest power density for low-pressure lamps
- Generate very little heat
- Potential for reducing number of lamps, system components and servicing intervals
| Ozone-free | Ozone-generating |
Spectrum: Wavelength | 254 nm | 185 nm, 254 nm |
Arc length | 25 – 150 cm | 25 – 150 cm |
Electrical power | 50 – 800 W | 50 – 800 W |
Typical UV efficiency at 254 nm | | |
Typical efficiency at 185 nm, natural quartz glass | - | approx. 6% |
Typical efficiency at 185 nm, synthetic quartz glass | - | approx. 9% |
Specific UVC flux | 0.5 –2 W/cm | 0.5 –2 W/cm |
Service life | 16,000 h | 16,000 h |
