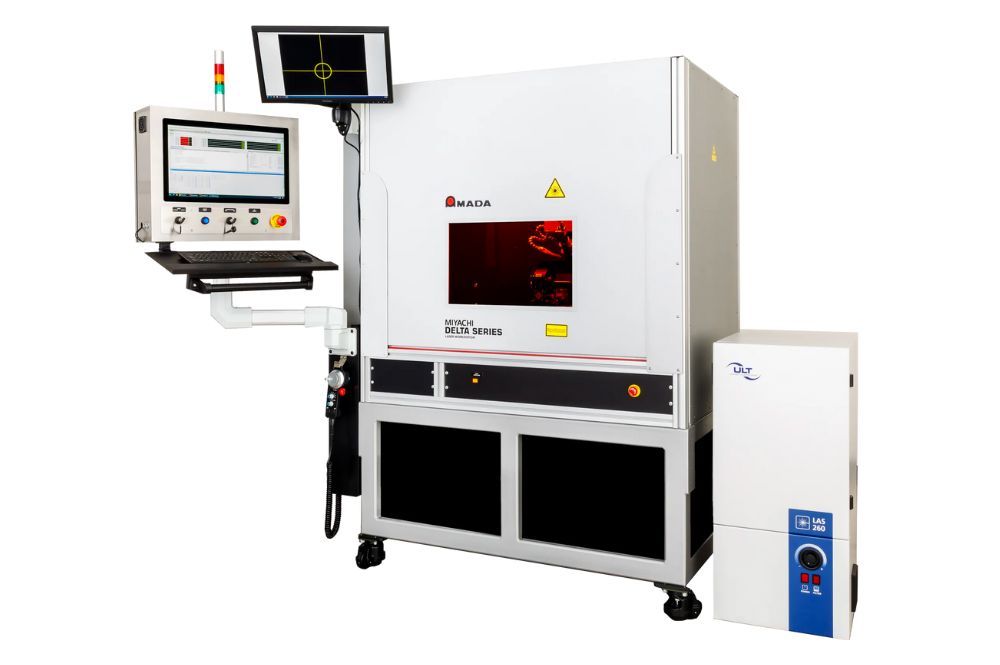

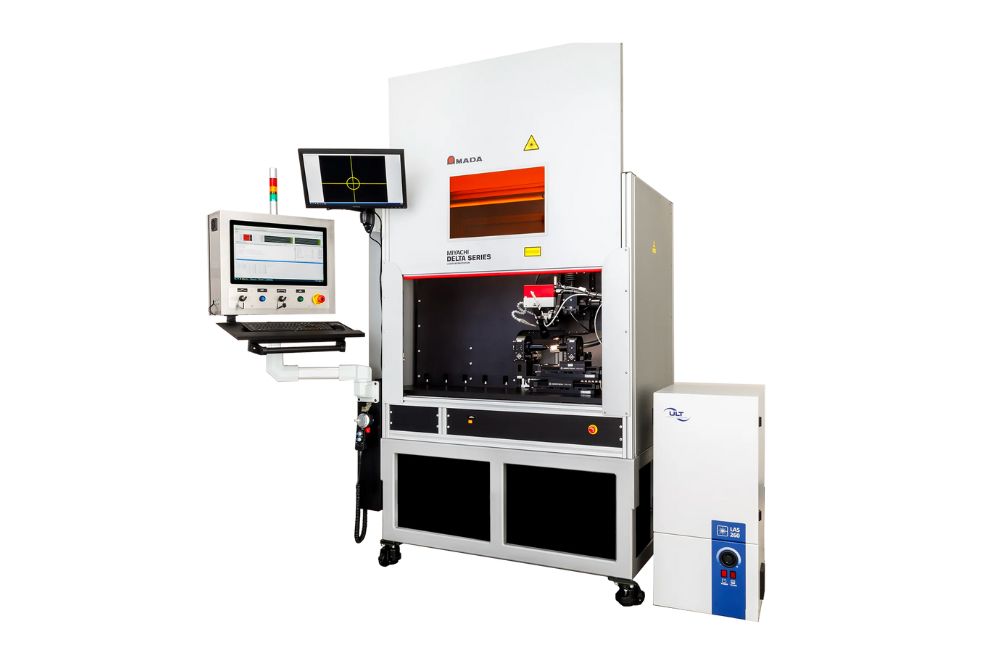

Delta Laser Micromachining Systems

Delta Laser Micromachining Systems are most commonly integrated with galvanometer scan heads and femtosecond lasers, which provide the best material removal quality, with minimal-to-no thermal defects, and the highest degree of process stability and precision. With options in IR, green, and in special cases, UV, wavelengths, femtosecond lasers provide the optimal processing capability for nearly any material, including metals and metal alloys, polymers, ceramics, and glasses. For processes that benefit from other types of laser sources, the Delta Laser Micromachining System can also be configured with a range of fiber, DPSS nanosecond green or UV, CO2, and picosecond lasers, selected specifically for your application.

Key Features

Femtosecond lasers in IR, green, or UV wavelength for optimal machining performance
Fiber, DPSS nanosecond green or UV, CO2, or picosecond lasers optional available
Optional rigid steel frame and fully vibration-isolated granite processing platform
Laser processing of materials including metals, alloys, polymers, ceramics, and glasses
Micro-machining, -milling, -drilling, surface texturing, scribing, marking, and ablation capabilities
Standard galvanometer scan head with multiple lens options
Fixed-optic focus head options
Multi-axis scan head option for complex geometries
Control software with graphical user interface tailored to the application
Off-axis and through-the-lens vision options
Sensitive optical components contained in positive-pressure environment
Flexible multi-axis motion stage configurations
Process monitoring capabilities
Standard and custom tooling offerings
Debris and nano-particulate management
Robotic arm options for part loading and unloading
Application and machine operation training provide

Technical Specifications

Laser and Motion Parameters	Specifications
Laser	Femtosecond laser; IR, green, or UV wavelengths
Picosecond laser; IR, green, or UV wavelengths	Picosecond laser; IR, green, or UV wavelengths
Fiber laser; IR wavelength	Fiber laser; IR wavelength
DPSS Nanosecond laser; Green or UV wavelengths	DPSS Nanosecond laser; Green or UV wavelengths
Focused Spot Size	< 10 µm achievable
Tooling	Collets: 5C Levin D, ER16, ER25, ER40
Linear Axes	Accuracy/Repeatability: Up to +/- 0.4 µm \| +/- 0.1 µm
Rotary Axes	Accuracy/Repeatability: Up to +/- 1 arcsec \| +/- 0.5 arcsec
Linear Z-Axes	Accuracy/Repeatability: Up to +/- 1 µm \| +/- 1 µm
*Note	Input power, dimensions and weight dependent on final system configuration.
