AMADA - Advanced Glovebox Welding System - AX5000

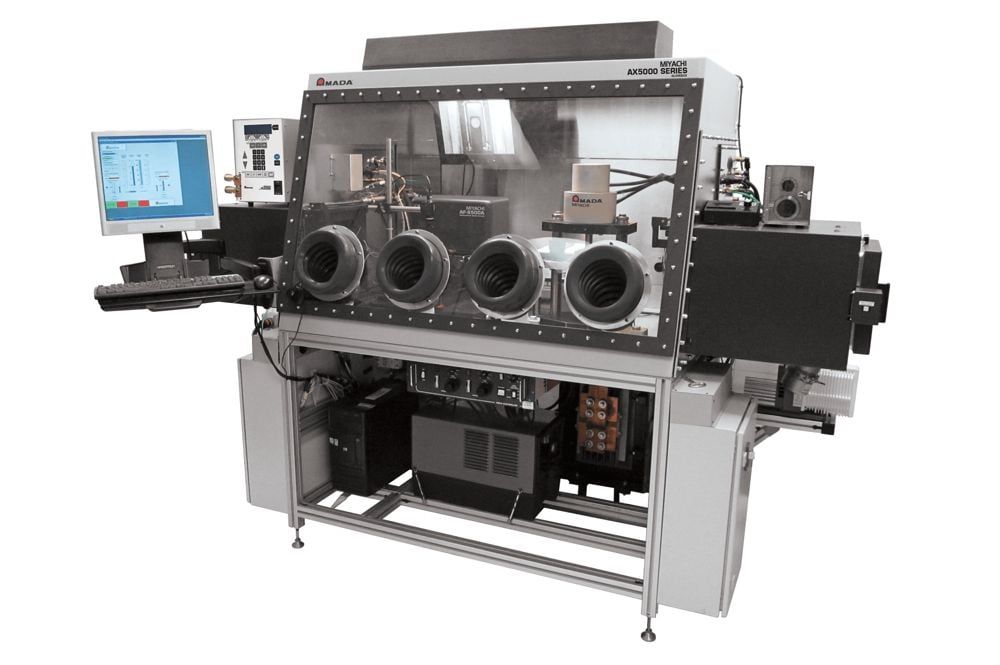

AMADA WELD TECH’s AX5000 Glovebox is a rugged, tight, Windows® controlled atmospheric enclosure. It provides a safe, easy-to-access, easy-to-use system optimized for hermetic sealing applications as seen in electronic component packaging manufacturing.
Built in the USA, constructed of Type 304 internally polished stainless steel, the AX5000’s sturdy tubular frame provides solid support for automation and motion requirements. The atmospheric enclosure features an easily-removed safety glass window equipped with glove ports that have built-in armrests and butyl gloves. The AX5000 conforms to NASA-STD-3000 ergonomic standards, allowing comfortable use for a broad range of body types.
- Fully computerized operation
- Historical and real time graphical display
- Independent vacuum pumping systems on all ovens and antechambers
- Integrated moisture, oxygen, argon, and helium monitoring
- Configurable modular design
Technical Specifications
Leak Rate (at 2,5 mbar) | < 1.0 SCFH (0.3m3/h) |
Enclosure Size (W x D Floor / D top x H) | 1219 x 965 mm / 736 x 914 mm (48 x 39 in / 29 x 36 in) - 2 Glove Ports
1423 x 965 mm / 736 x 914 mm (56 x 39 in / 29 x 36 in) - 4 Glove Ports |
Antechamber and Oven Sizes (L x W x H) | 465 x 290 x 265 mm (18.5 x 11.5 x 10.5 in) - Stainless Steel
686 x 290 x 265 mm (27 x 11.5 x 10.5 in) - Stainless Steel |
Antechamber Controls | Computer: Backfill |
Oven Controls | Computer: Temperature, Vacuum, Backfill |
Antechamber & Oven Interlocks | Yes |
Antechamber & Automated Sliding Inner Door | Yes |
Antechamber and Oven Door Loading Options | Front, Rear, End |
Oven Heating Configuration | Heated Walls |
Heated Shelves | Heated Shelves |
Weight | Varies with selected options |
| | For further details, please refer to enclosed brochure. |
